ASGB-FF-G
ActiveMenics
COMPLETE UNIT GRN INCAND ROTAT
Deep-Dive with AI
Search across all available documentation for this part.
ASGB-FF-G
ActiveMenics
COMPLETE UNIT GRN INCAND ROTAT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ASGB-FF-G | ASGB-FF Series |
|---|---|---|
| Function - Lighting | Rotating | Rotating |
| Ingress Protection | IP42 | IP42 |
| Lamp Type | Incandescent | Incandescent |
| Light Color | Green | Green, Red, Yellow |
| Number of Stacks | 1 | 1 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -15 °C | -15 °C |
| Termination Style | Wire Leads | Wire Leads |
| Type | Complete Unit | Complete Unit |
| Voltage - Supply [Max] | 220 VAC | 220 VAC |
| Voltage - Supply [Min] | 110 VAC | 110 VAC |
ASGB-FF Series
COMPLETE UNIT GRN INCAND ROTAT
| Part | Light Color | Lamp Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Function - Lighting | Termination Style | Ingress Protection | Type | Number of Stacks |
|---|---|---|---|---|---|---|---|---|---|---|---|
Menics ASGB-FF-G | Green | Incandescent | 110 VAC | 220 VAC | -15 °C | 40 °C | Rotating | Wire Leads | IP42 | Complete Unit | 1 |
Menics ASGB-FF-B | Incandescent | 110 VAC | 220 VAC | -15 °C | 40 °C | Rotating | Wire Leads | IP42 | Complete Unit | 1 | |
Menics ASGB-FF-R | Red | Incandescent | 110 VAC | 220 VAC | -15 °C | 40 °C | Rotating | Wire Leads | IP42 | Complete Unit | 1 |
Menics ASGB-FF-Y | Yellow | Incandescent | 110 VAC | 220 VAC | -15 °C | 40 °C | Rotating | Wire Leads | IP42 | Complete Unit | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.72 | |
Description
General part information
ASGB-FF Series

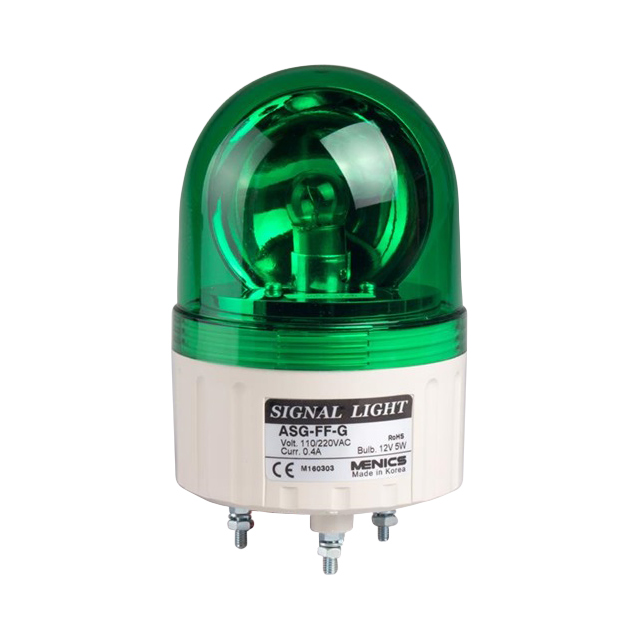

Stack Light Complete Unit Green Incandescent Wire Leads
Documents
Technical documentation and resources
