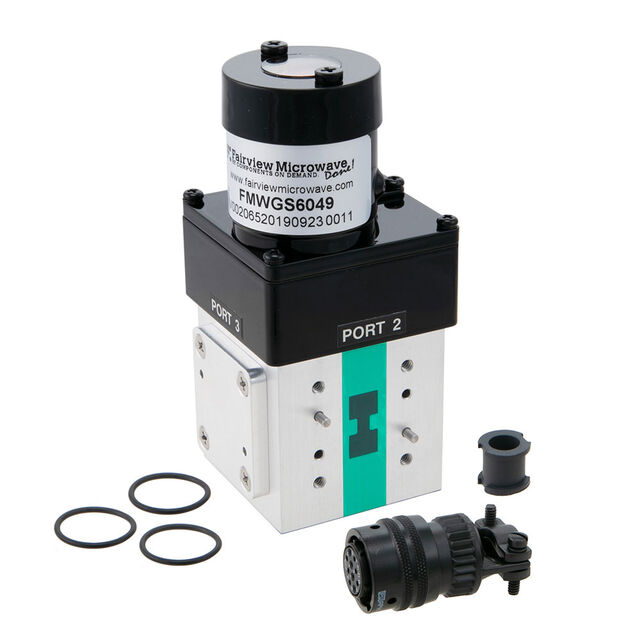

FMWGS6049
ObsoleteFairview Microwave
WG EM RELAY SWITCH WRD-750 18 GH
FMWGS6049
ObsoleteFairview Microwave
WG EM RELAY SWITCH WRD-750 18 GH
Description
General part information
FMWGS6049
RF Switch IC Radar, VSAT SPDT, DPDT
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWGS6049 |
|---|---|
| Circuit | SPDT, DPDT |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 7.5 GHz |
| Insertion Loss (max) | 0.3 dB |
| Isolation (Min) | 60 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT, Radar |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 21 VDC |
