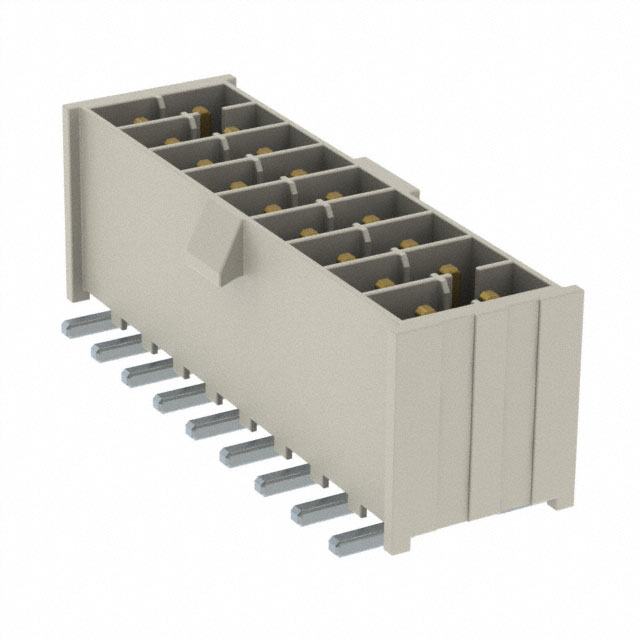

IPL1-109-02-S-D-K

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" MINI MATE ISOLATED POWER TERMINAL HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPD1 Series Other Related Documents 03 Datasheet +3

IPL1-109-02-S-D-K

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" MINI MATE ISOLATED POWER TERMINAL HEADER

Deep-Dive with AI

DocumentsIPD1 Series Other Related Documents 03 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-109-02-S-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-105 Series

Headers & Wire Housings .100" Mini Mate Isolated Power Terminal Header

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Material Flammability Rating	Number of Positions	Insulation Height	Insulation Height	Style	Contact Type	Number of Positions Loaded	Mounting Type	Voltage Rating	Shrouding	Contact Finish - Mating	Insulation Material	Insulation Color	Number of Rows	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Features
Samtec Inc. IPL1-105-02-L-D-K	0.1 in	2.54 mm	Tin	Solder	2.54 mm	0.1 in	-55 °C	125 °C	10 çin	0.25 çm	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	10	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Surface Mount	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header
Samtec Inc. IPL1-105-01-H-S-RA-K	0.1 in	2.54 mm	Gold	Solder			-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0		6.1 mm	0.24 in	Board to Cable/Wire	Male Pin	All	Through Hole Right Angle	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	1	Phosphor Bronze	Header	3 µin	0.076 µm	2.16 mm	0.085 in
Samtec Inc. IPL1-108-01-H-D-RA-K	0.1 in	2.54 mm	Gold	Solder	2.54 mm	0.1 in	-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0		7.37 mm	0.29 in	Board to Cable/Wire	Male Pin	All	Through Hole Right Angle	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header	3 µin	0.076 µm	2.16 mm	0.085 in	16
Samtec Inc. IPL1-105-01-SM-D-K	0.1 in	2.54 mm	Tin	Solder	2.54 mm	0.1 in	-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	10	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Through Hole	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header						0.12 in	3.05 mm
Samtec Inc. IPL1-115-01-L-S-K	0.1 in	2.54 mm	Tin	Solder			-55 °C	125 °C	10 çin	0.25 çm	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	15	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Through Hole	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	1	Phosphor Bronze	Header						0.12 in	3.05 mm
Samtec Inc. IPL1-105-02-STL-D-K-TR	0.1 in	2.54 mm	Tin	Solder	2.54 mm	0.1 in	-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	10	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Surface Mount	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header
Samtec Inc. IPL1-105-02-L-SH-K-TR	0.1 in	2.54 mm	Tin	Solder			-55 °C	125 °C	10 çin	0.25 çm	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0		5.6 mm	0.22 in	Board to Cable/Wire	Male Pin	All	Surface Mount Right Angle	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	1	Phosphor Bronze	Header								Board Guide
Samtec Inc. IPL1-105-01-SM-D-P	0.1 in	2.54 mm	Tin	Solder	2.54 mm	0.1 in	-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	10	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Through Hole	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header						0.12 in	3.05 mm
Samtec Inc. IPL1-105-02-H-D-K-TR	0.1 in	2.54 mm	Gold	Solder	2.54 mm	0.1 in	-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	10	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Surface Mount	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header	3 µin	0.076 µm
Samtec Inc. IPL1-105-01-H-D-K	0.1 in	2.54 mm	Gold	Solder	2.54 mm	0.1 in	-55 °C	125 °C	30 Áin	0.76 Ám	Locking Ramp	5.46 mm	0.215 in	Square	UL94 V-0	10	8.13 mm	0.32 in	Board to Cable/Wire	Male Pin	All	Through Hole	675 VAC 954 VDC	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	Natural	2	Phosphor Bronze	Header	3 µin	0.076 µm				0.12 in	3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	23	$ 5.18
Sager	N/A	1	$ 5.81
		10	$ 5.18
		25	$ 4.78
		50	$ 4.20
		100	$ 3.64
		500	$ 3.12
		1000	$ 2.68
		2000	$ 2.30

Description

General part information

IPL1-105 Series

Headers & Wire Housings .100" Mini Mate Isolated Power Terminal Header

Documents

Technical documentation and resources

IPD1 Series Other Related Documents 03

Datasheet

IPL1 Series Other Related Documents 01

IPL1 Datasheet

Datasheet

Document
