DEP1016NP-330PB
ActiveSumida America Components Inc.
FIXED IND 33UH 7.3A 15 MOHM TH
DEP1016NP-330PB
ActiveSumida America Components Inc.
FIXED IND 33UH 7.3A 15 MOHM TH
Description
General part information
DEP1016NP-330PB

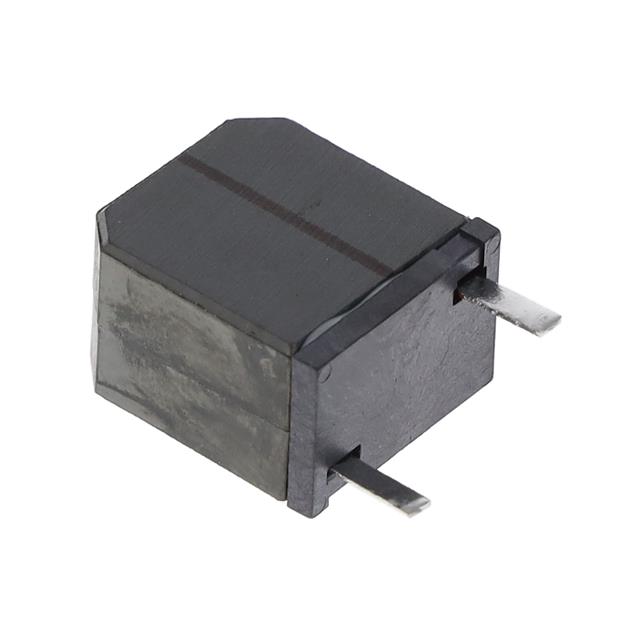

33 µH Shielded Inductor 7.3 A 15mOhm Max Radial, Vertical - Corner Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | DEP1016NP-330PB |
|---|---|
| Current - Saturation (Isat) | 5.8 A |
| Current Rating | 7.3 A |
| DC Resistance (DCR) (Max) | 15 mOhm |
| Height - Seated (Max) | 0.63 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical - Corner Terminals, Radial |
| Shielding | Shielded |
| Size / Dimension Length | 0.571 in |
| Size / Dimension Width | 0.398 in |
| Tolerance | 25 % |
