ZW-07-10-T-S-472-112
ActiveSamtec Inc.

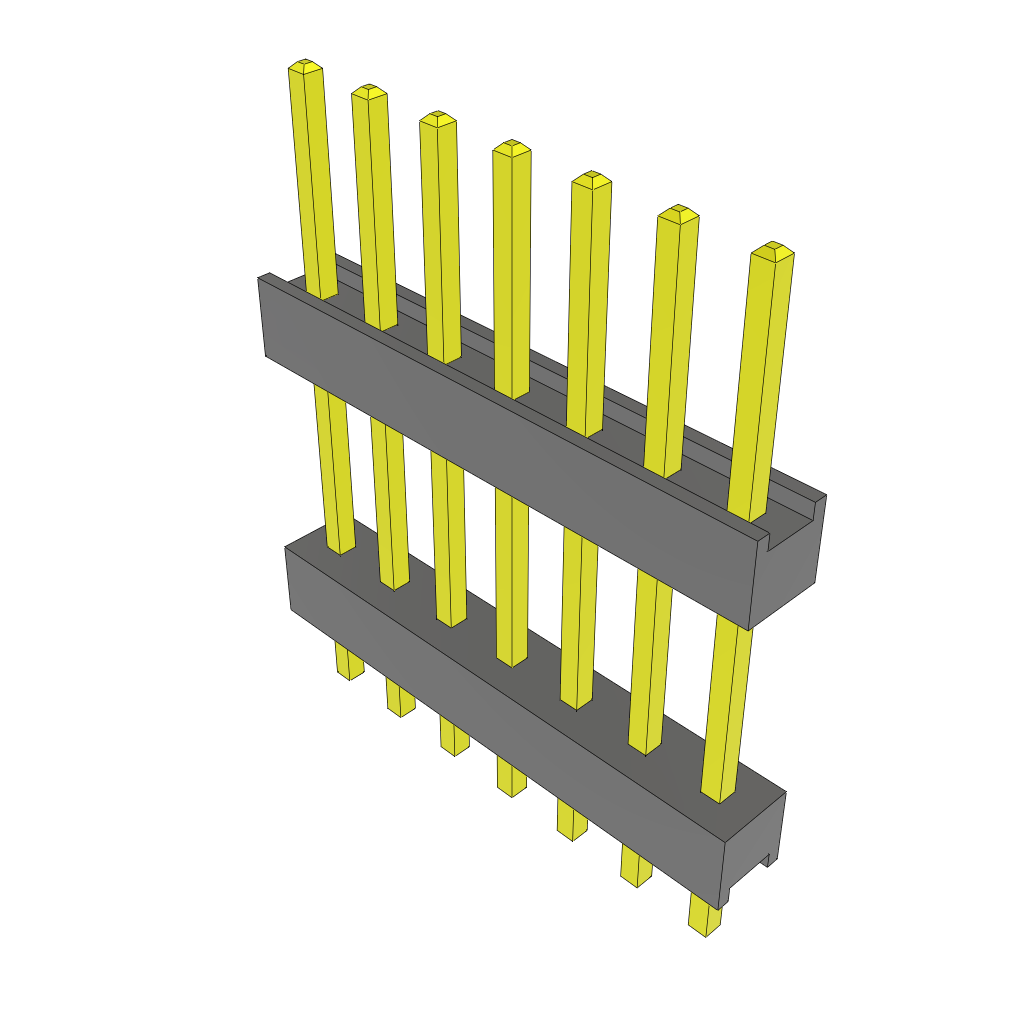

CONN BOARD STACKER HDR 7 POS 2.54MM SOLDER ST THRU-HOLE BULK
ZW-07-10-T-S-472-112
ActiveSamtec Inc.
CONN BOARD STACKER HDR 7 POS 2.54MM SOLDER ST THRU-HOLE BULK
Description
General part information
ZW-07-10-T-S-472-112
Position Header Spacer Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | ZW-07-10-T-S-472-112 |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Tin |
| Length - Overall Pin | 0.83 in |
| Length - Post (Mating) | 0.246 in |
| Length - Stack Height | 0.472 in |
| Length - Tail | 0.112 in |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch | 0.1 in |
| Termination | Solder |
