Specification	601D477F100GP1

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	230 mOhm
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C

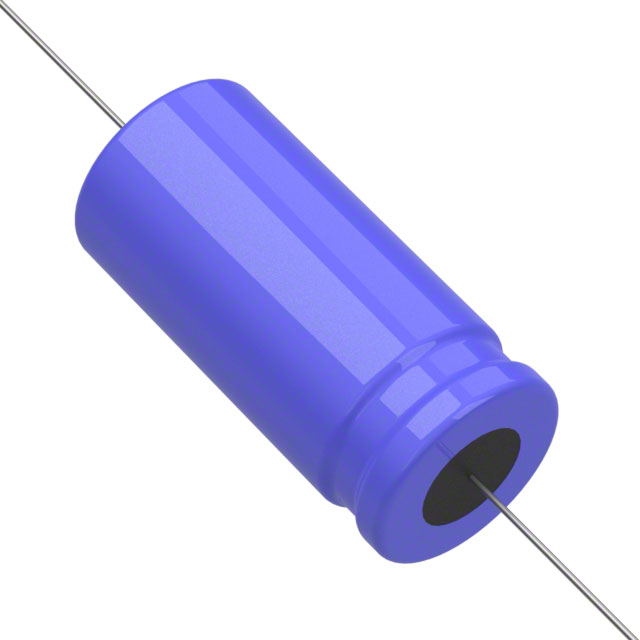

Package / Case	Can, Axial
Polarization	Polar
Ripple Current	1.92 A, 2.304 A
Size / Dimension Diameter	0.75 in
Size / Dimension Length	2.625 in
Tolerance (Negative)	10 %
Tolerance (Positive)	50 %
Voltage - Rated	100 VAC/DC
