FPA28-PFPF-S24
ActiveConductRF

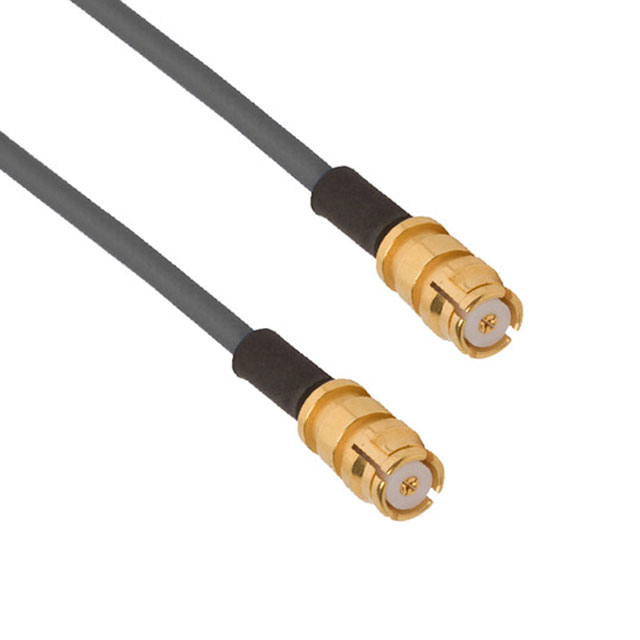

CBL ASSY SMP JACK TO JACK 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPA28-PFPF-S24
ActiveConductRF
CBL ASSY SMP JACK TO JACK 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FPA28-PFPF-S24 | FPA28 Series |
|---|---|---|
| 1st Connector | SMP Jack | SMP Jack, Right Angle, SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Contact Gender | Female | Female, Male |
| 2nd Connector | SMP Jack | SMP Jack, Right Angle, SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Female | Female |
| Cable Type | 2.18mm OD Coaxial Cable | 2.18mm OD Coaxial Cable |
| Color | Black | Black |
| Connector Impedance | 50 Ohms | 50 Ohms |
| Features | Shielded | Shielded |
| Frequency - Max [Max] | 27 GHz | 27 GHz |
| Length | 24 " | 8 - 24 in |
| Length | 609.6 mm | 203.2 - 609.6 mm |
| Length | - | 406.4 mm |
| Length | - | 16 in |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | SMP to SMP | SMP to SMP, SMA to SMP |
FPA28 Series
CBL ASSY SMP JACK TO JACK 16"
| Part | Connector Impedance | Style | Overall Impedance | Color | Frequency - Max [Max] | 1st Connector Mounting Type | 1st Connector | Features | 2nd Connector Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | 2nd Connector | Cable Type | 1st Contact Gender | 2nd Contact Gender | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ConductRF FPA28-PRPR-S16 | 50 Ohms | SMP to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | Right Angle, SMP Jack | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | 406.4 mm | 16 in | SMP Jack, Right Angle | 2.18mm OD Coaxial Cable | Female | Female | ||
ConductRF FPA28-PFPF-S16 | 50 Ohms | SMP to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMP Jack | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | 406.4 mm | 16 in | SMP Jack | 2.18mm OD Coaxial Cable | Female | Female | ||
ConductRF FPA28-S1PR-S08 | 50 Ohms | SMA to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMA Plug | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | SMP Jack, Right Angle | 2.18mm OD Coaxial Cable | Male | Female | 8 in | 203.2 mm | ||
ConductRF FPA28-PFPF-S12 | 50 Ohms | SMP to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMP Jack | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | SMP Jack | 2.18mm OD Coaxial Cable | Female | Female | 12 " | 304.8 mm | ||
ConductRF FPA28-S1PR-S16 | 50 Ohms | SMA to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMA Plug | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | 406.4 mm | 16 in | SMP Jack, Right Angle | 2.18mm OD Coaxial Cable | Male | Female | ||
ConductRF FPA28-PFPR-S16 | 50 Ohms | SMP to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMP Jack | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | 406.4 mm | 16 in | SMP Jack, Right Angle | 2.18mm OD Coaxial Cable | Female | Female | ||
ConductRF FPA28-PRPR-S24 | 50 Ohms | SMP to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | Right Angle, SMP Jack | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | SMP Jack, Right Angle | 2.18mm OD Coaxial Cable | Female | Female | 24 " | 609.6 mm | ||
ConductRF FPA28-S1PF-S08 | 50 Ohms | SMA to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMA Plug | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | SMP Jack | 2.18mm OD Coaxial Cable | Male | Female | 8 in | 203.2 mm | ||
ConductRF FPA28-S1PF-S24 | 50 Ohms | SMA to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMA Plug | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | SMP Jack | 2.18mm OD Coaxial Cable | Male | Female | 24 " | 609.6 mm | ||
ConductRF FPA28-PFPF-S08 | 50 Ohms | SMP to SMP | 50 Ohms | Black | 27 GHz | Free Hanging (In-Line) | SMP Jack | Shielded | Free Hanging (In-Line) | -55 °C | 125 °C | SMP Jack | 2.18mm OD Coaxial Cable | Female | Female | 8 in | 203.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 119.44 | |
| 5 | $ 112.40 | |||
| 10 | $ 106.17 | |||
| 25 | $ 95.55 | |||
| 50 | $ 86.86 | |||
| 100 | $ 83.09 | |||
| 250 | $ 79.62 | |||
| 500 | $ 76.44 | |||
| 1000 | $ 73.50 | |||
Description
General part information
FPA28 Series
Cable Assembly Coaxial SMP to SMP 2.18mm OD Coaxial Cable 24.00" (609.60mm)
