Description
General part information

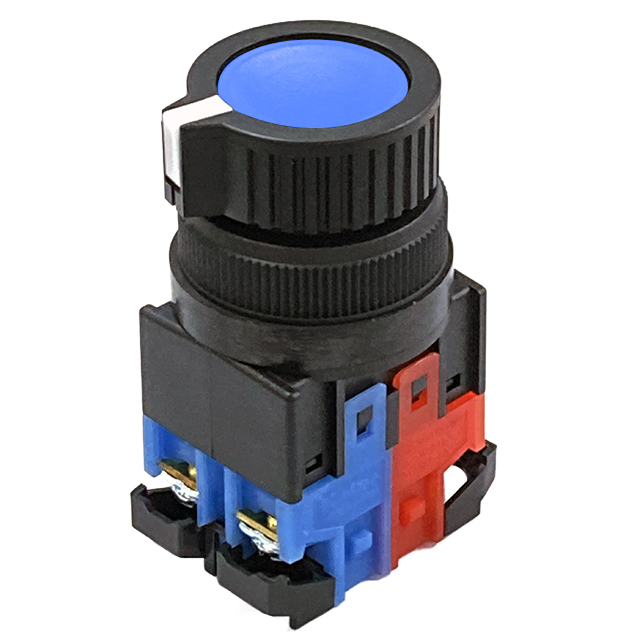

KPB30MS-11-B
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | KPB30MS-11-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Flush, Rectangular |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Blue |
| Current Rating | 6 A |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 500000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Type | Standard |
