1274824-2

Active

TE Connectivity AMP Connectors

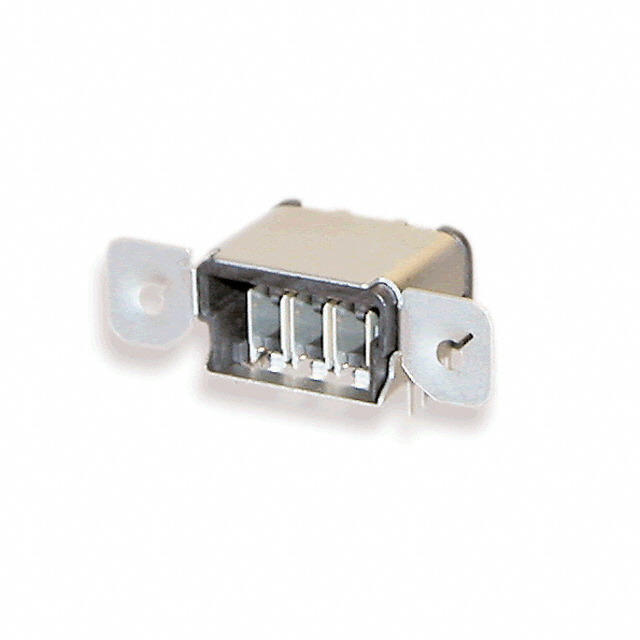

CONN QSL RCPT R/A 50 OHM SMD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QSL RCPT R/A 50 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	1274824-2

Body Finish	Tin
Body Material	Steel
Cable Group	RG-174, 316
Center Contact Material	Copper Alloy
Center Contact Plating	Tin
Connector Style	Three Port, QSL
Connector Type	Receptacle, Non-Gendered
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Push-Pull
Features	Mounting Flange
Frequency - Max [Max]	6000 MHz
Housing Color	Black
Impedance	50 Ohms
Insertion Loss	0.4 dB
Mating Cycles	500
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	270 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	810	$ 10.33

CONN QSL RCPT R/A 50 OHM SMD

Part	Body Material	Shield Termination	Frequency - Max [Max]	Connector Type	Impedance	Insertion Loss	Number of Ports	Center Contact Plating	Mating Cycles	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Center Contact Material	Connector Style	Features	Cable Group	Mounting Type	Voltage Rating	Contact Termination	Dielectric Material	Fastening Type
TE Connectivity AMP Connectors 1274824-2	Steel	Solder	6000 MHz	Receptacle, Non-Gendered	50 Ohms	0.4 dB	1	Tin	500	Black	85 °C	-40 °C	Tin	Copper Alloy	QSL, Three Port	Mounting Flange	316, RG-174	Surface Mount, Right Angle, Through Hole	270 V	Solder	Liquid Crystal Polymer (LCP)	Push-Pull

General part information

QSL, Three Port Connector Receptacle, Non-Gendered 50 Ohms Surface Mount, Right Angle; Through Hole Solder
