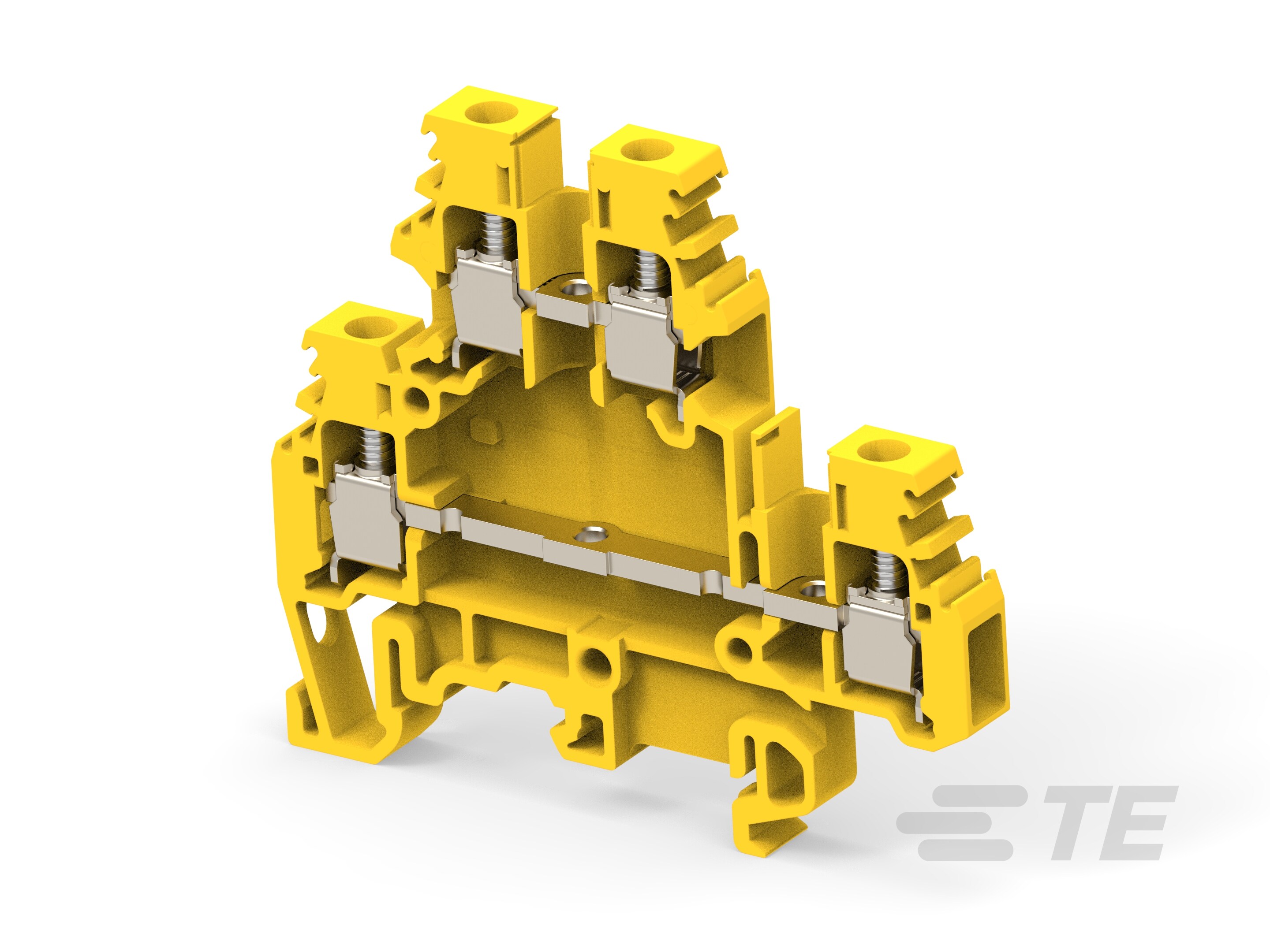

Specification	1SNA105045R2200

Color	Yellow
Current - IEC	32 A
Current - UL	20 A
Number of Levels	2
Number of Positions	4
Terminal Width	6 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²

ENTRELEC SNA Series

...

Part	Type	Number of Levels	Color	Termination Style	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Current - UL	Voltage - IEC	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Voltage - UL	Current - IEC	Terminal Width	Number of Positions	Grounded Levels	Disconnect Type
TE Connectivity AMP Connectors 1SNA113003R1000
TE Connectivity AMP Connectors 1SNA400191R2600	Feed Through	1	Black	Screw	18 AWG	6 AWG	85 A	1000 V	2.5 mm²	25 mm²	600 V	76 A	12 mm	2
TE Connectivity AMP Connectors 1SNA115532R0000	Feed Through	3		Screw									6 mm	5	1
TE Connectivity AMP Connectors 1SNA115485R0200	Feed Through	1	Gray	Screw	22 AWG	12 AWG	30 A	1000 V	0.2 mm²	4 mm²	600 V	24 A	5 mm	2
TE Connectivity AMP Connectors 1SNA115239R2200	Disconnect	1	Gray	Screw	18 AWG	8 AWG	30 A	630 V	0.5 mm²	10 mm²	150 V	40 A	8 mm	2		Slide Switch
TE Connectivity AMP Connectors 1SNA125116R0100	Feed Through	1	Blue	Screw	22 AWG	10 AWG	30 A	1000 V	0.2 mm²	4 mm²	600 V	32 A	6 mm	2
TE Connectivity AMP Connectors 1SNA125468R2200	Feed Through	1	Blue	Screw	22 AWG	10 AWG	20 A	800 V	0.2 mm²	4 mm²	600 V	32 A	6 mm	3
TE Connectivity AMP Connectors 1SNA195118R1200	Feed Through	1	Beige	Screw	22 AWG	8 AWG	50 A	1000 V	0.5 mm²	10 mm²	600 V	41 A	8 mm	2
TE Connectivity AMP Connectors 1SNA114522R0500
TE Connectivity AMP Connectors 1SNA115237R1000
