1404423
ActivePhoenix Contact
CONN RCPT FMALE 12P SOLDER CUP
1404423
ActivePhoenix Contact
CONN RCPT FMALE 12P SOLDER CUP
Description
General part information
1404423

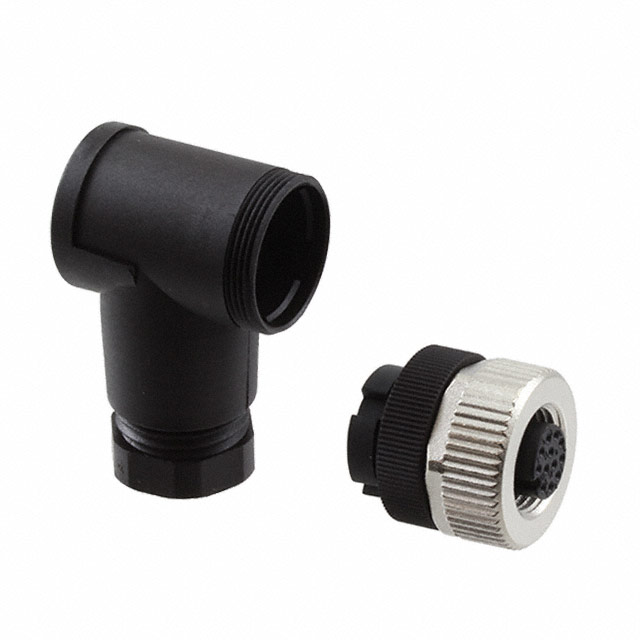

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1404423 |
|---|---|
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Cable Opening (Max) | 0.315 in |
| Cable Opening (Min) | 0.236 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 1.5 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-12 |
| Termination | Solder Cup |
| Voltage Rating | 30 V |
| Voltage Rating (Type) | DC, AC |
