ACB-24-V-20A
ActiveOptiFuse
VER. BRACKET-TYPE I AUTO,20A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACB-24-V-20A
ActiveOptiFuse
VER. BRACKET-TYPE I AUTO,20A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACB-24-V-20A | ACB-24 Series |
|---|---|---|
| Actuator Type | Automatic Reset | Automatic Reset |
| Approval Agency | SAEJ553 | SAEJ553 |
| Breaker Type | Shortstop | Shortstop |
| Current Rating (Amps) | 20 A | 10 - 50 A |
| Illumination | None | None |
| Number of Poles | 1 | 1 |
| Voltage Rating - DC | 24 V | 24 V |
ACB-24 Series
VER. BRACKET-TYPE I AUTO,40A 24V
| Part | Current Rating (Amps) | Approval Agency | Number of Poles | Actuator Type | Breaker Type | Illumination | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|
OptiFuse ACB-24-V-40A | 40 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-H-10A | 10 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-H-20A | 20 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-H-40A | 40 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-N-10A | 10 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-V-20A | 20 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-H-25A | 25 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-N-25A | 25 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-H-30A | 30 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
OptiFuse ACB-24-H-15A | 15 A | SAEJ553 | 1 | Automatic Reset | Shortstop | None | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.81 | |
| 10 | $ 5.46 | |||
| 25 | $ 5.11 | |||
| 50 | $ 4.76 | |||
| 100 | $ 4.42 | |||
| 250 | $ 4.34 | |||
| 500 | $ 4.26 | |||
| 1000 | $ 4.18 | |||
Description
General part information
ACB-24 Series

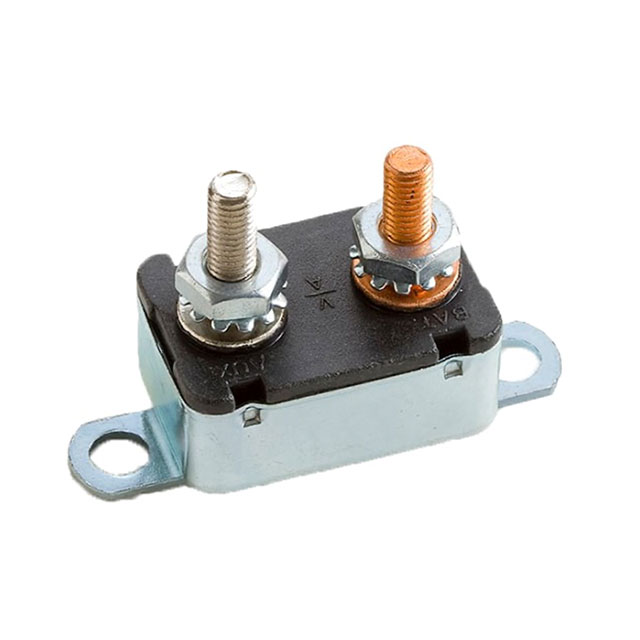

Circuit Breaker Shortstop 20A AC 24 V DC Automatic Reset
