BU-191420003
ActiveMueller Electric Co

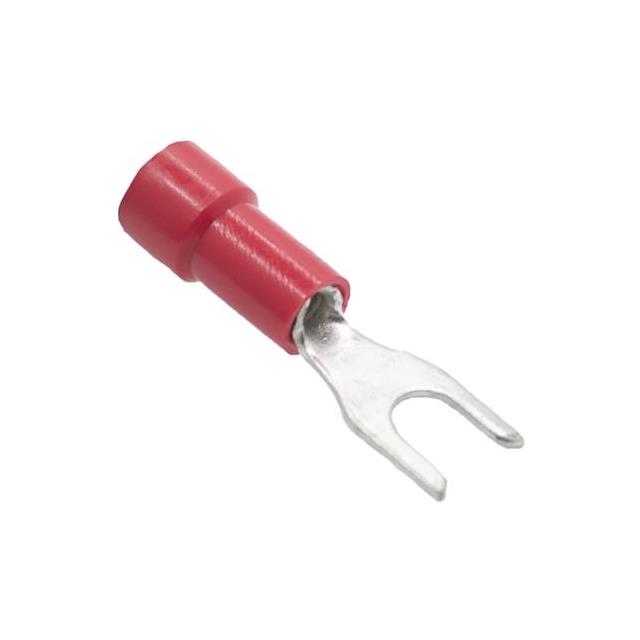

FORK / SPADE TONGUE TERMINAL, 22AWG TO 18AWG, #6, VINYL
BU-191420003
ActiveMueller Electric Co
FORK / SPADE TONGUE TERMINAL, 22AWG TO 18AWG, #6, VINYL
Description
General part information
BU-191420003
Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-191420003 |
|---|---|
| Color | Red |
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Insulation | Insulated |
| Length - Overall | 0.95 in |
| Length - Ring Center to Termination | 0.321 in |
| Material - Insulation | Vinyl |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.149 in |
| Width - Outer Edges | 0.25 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
