1424637
ActivePhoenix Contact

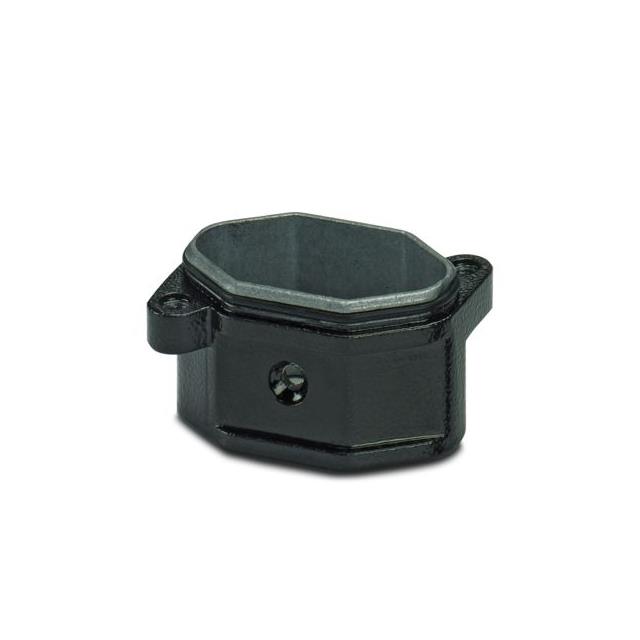

PANEL MOUNTING BASE, STRAIGHT D7
1424637
ActivePhoenix Contact
PANEL MOUNTING BASE, STRAIGHT D7
Description
General part information
1424637
Base - Panel Mount Connector Bottom Entry D7 IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1424637 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Zinc |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | D7 |
| Size / Dimension Height | 0.972 in |
| Size / Dimension Length | 1.787 in |
| Size / Dimension Width | 1.268 in |
| Style | Bottom Entry |
