1424KWMS4
ActiveKanebridge

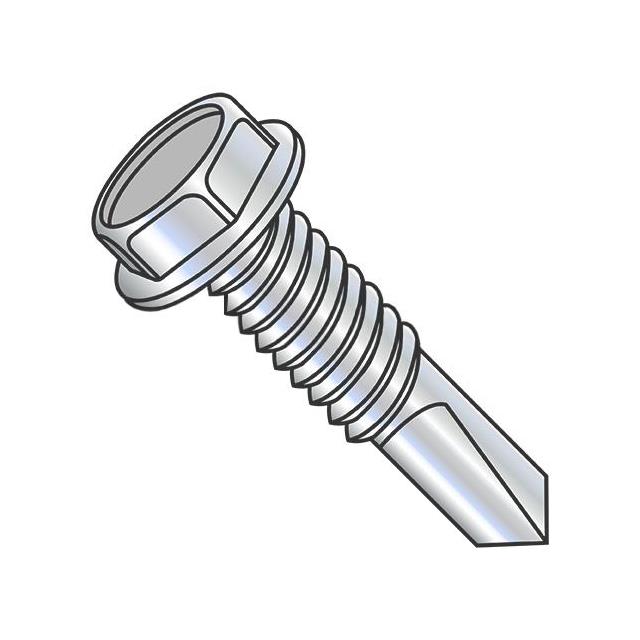

SELF-DRILLING SCREW - HEX WASHER
1424KWMS4
ActiveKanebridge
SELF-DRILLING SCREW - HEX WASHER
Description
General part information
1424KWMS4
1/4"-20 Hex Head Self-Drilling Screw External Hex Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1424KWMS4 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Washer Included |
| Head Diameter | 0.371 in |
| Head Height | 0.181 in |
| Length - Below Head | 1.5 in |
| Length - Overall | 1.681 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Hex Head |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
