917693-1

Active

TE Connectivity AMP Connectors

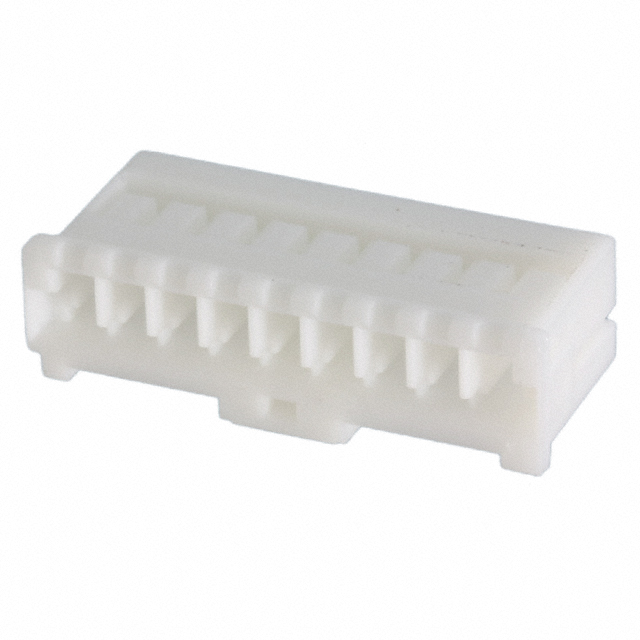

CONN PLUG HSG 9POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 9POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG HSG 9POS 2.50MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Fastening Type	Contact Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Termination	Insulation Material	Connector Type	Note	Color
TE Connectivity AMP Connectors 5-917693-1	-30 ░C	105 ░C	1	Free Hanging (In-Line)	Locking Ramp	Female Socket	9	0.098 in	2.5 mm	Crimp	Polyamide (PA66), Nylon 6/6	Plug	Contacts Not Included	Natural
TE Connectivity AMP Connectors 917693-1	-30 ░C	105 ░C	1	Free Hanging (In-Line)	Locking Ramp	Female Socket	9	0.098 in	2.5 mm	Crimp	Polyamide (PA66), Nylon 6/6	Plug	Contacts Not Included	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
