LDD-C814RI

Active

Lumex Opto/Components Inc.

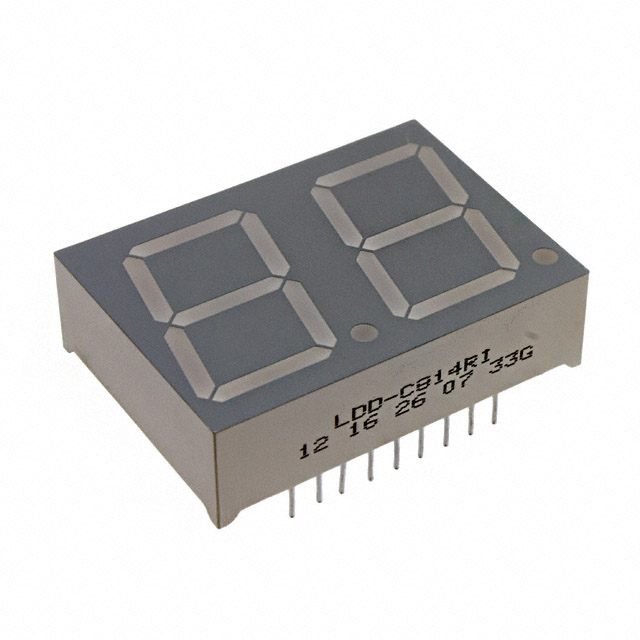

DISPLAY 7-SEG 0.8" DBL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDD-C814RI

Active

Lumex Opto/Components Inc.

DISPLAY 7-SEG 0.8" DBL RED 18DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-C814RI

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	7-Segment
Millicandela Rating	3.9 mcd
Number of Characters	2
Package / Case	22 mm
Package / Case	18-DIP
Package / Case	0.866 in
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	1.016 in
Size / Dimension [x]	25.8 mm
Size / Dimension [y]	1.409 in
Size / Dimension [y]	35.8 mm
Size / Dimension [z]	10 mm
Size / Dimension [z]	0.394 in
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LDD-C814 Series

DISPLAY 7-SEG 0.8" DBL RED 18DIP

Part	Package / Case	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Number of Characters	Common Pin	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Color	Power Dissipation (Max) [Max]	Millicandela Rating	Display Type	Wavelength - Peak
Lumex Opto/Components Inc. LDD-C814RI	22 mm	18-DIP	0.866 in	1.016 in	10 mm	1.409 in	35.8 mm	25.8 mm	0.394 in	2 V	2	Common Cathode	10 mA	20.32 mm	0.8 in	Red	105 mW	3.9 mcd	7-Segment	635 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1008	$ 1.65

Description

General part information

LDD-C814 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 10mA 1.016" H x 1.409" W x 0.394" D (25.80mm x 35.80mm x 10.00mm) 18-DIP (0.866", 22.00mm)
