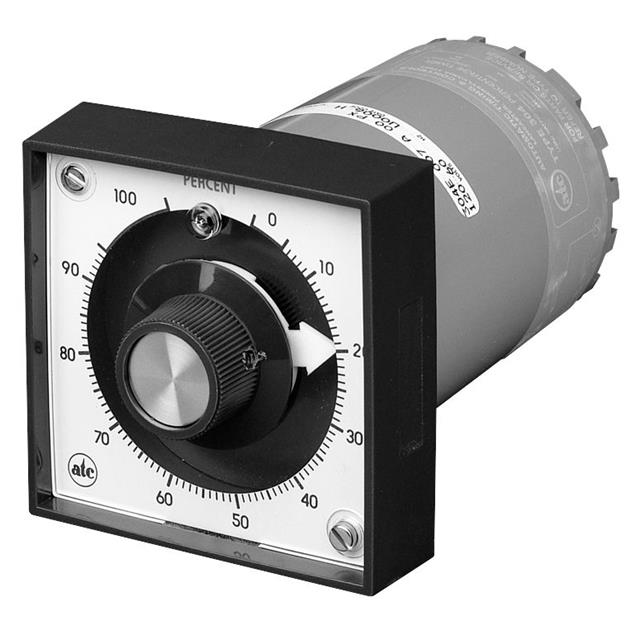

304E-007-A-00-P-X

Active

ATC-Diversified Electronics

RELAY TIME DELAY 60SEC 15A 120V

Search across all available documentation for this part.

Active

ATC-Diversified Electronics

RELAY TIME DELAY 60SEC 15A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	304E-007-A-00-P-X

Contact Rating @ Voltage [custom]	120 VAC
Contact Rating @ Voltage [custom]	15 A
Delay Time	Fixed
Delay Time	60 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

RELAY TIME DELAY 60SEC 15A 120V

Part	Termination Style	Mounting Type	Delay Time	Delay Time	Function	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Timing Adjustment Method	Voltage - Supply	Timing Initiate Method	Relay Type
ATC-Diversified Electronics 304E-007-A-00-P-X	Plug In	Socketable	Fixed	60 Sec	Programmable (Multi-Function)	120 VAC	15 A	Hand Dial	120 VAC	Input Voltage	Mechanical Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 733.56

General part information

Programmable (Multi-Function) Time Delay Relay SPST-NO (1 Form A) Fixed, 60 Sec Delay 15A @ 120VAC Socketable
