CS6085-000
ActiveTE Connectivity AMP Connectors
CPGI-WC-PG-6-PORT-BULK
Deep-Dive with AI
Search across all available documentation for this part.
CS6085-000
ActiveTE Connectivity AMP Connectors
CPGI-WC-PG-6-PORT-BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CS6085-000 | CS60 Series |
|---|---|---|
| Color | Purple | Yellow, Purple |
| Insulation | Fully Insulated | Fully Insulated |
| Number of Wire Entries | 6 | 2 - 6 |
| Terminal Type | Individual Openings, Closed End, Butt Splice | Individual Openings, Closed End, Butt Splice |
| Termination | Push In | Push In |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CS60 Series
CPGI-WC-PG-2-PORT-BULK
| Part | Termination | Insulation | Number of Wire Entries | Color | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CS6084-000 | Push In | Fully Insulated | 2 | Yellow | 12 AWG | 22 AWG | Butt Splice, Closed End, Individual Openings |
TE Connectivity AMP Connectors CS6085-000 | Push In | Fully Insulated | 6 | Purple | 12 AWG | 22 AWG | Butt Splice, Closed End, Individual Openings |
Description
General part information
CS60 Series

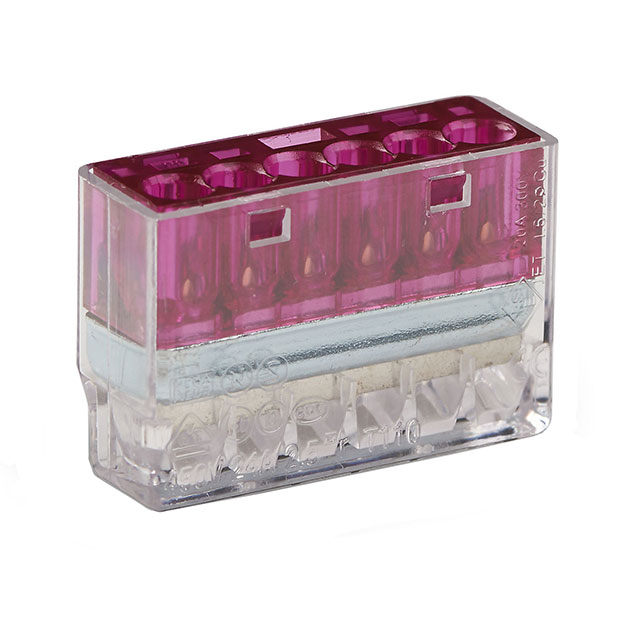

Terminal Butt Splice, Closed End, Individual Openings Connector Push In 12-22 AWG Purple
