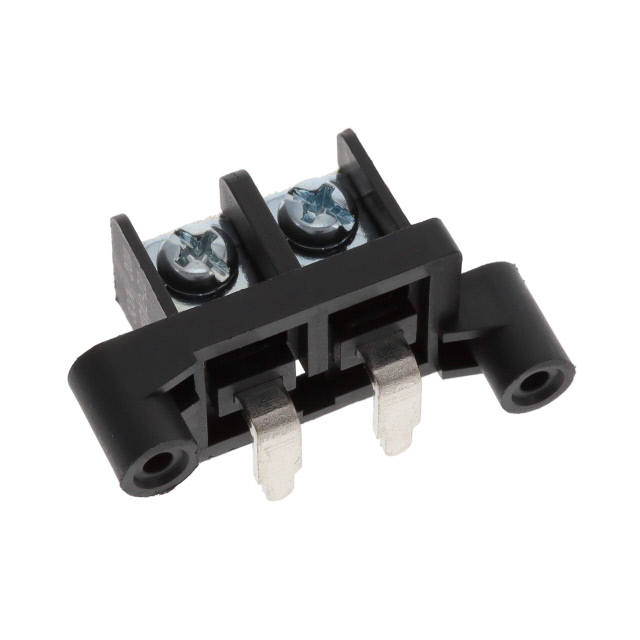

YK1140233100G
ActiveAMPHENOL ANYTEK
BARRIER TERMINAL BLOCKS 2POS, PI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YK1140233100G
ActiveAMPHENOL ANYTEK
BARRIER TERMINAL BLOCKS 2POS, PI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | YK1140233100G | YK114 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Solder Tab | Solder Tab |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Right Angle, Chassis | Panel, Right Angle, Chassis |
| Number of Circuits | 2 | 2 - 25 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 2 | 2 - 25 |
| Number of Wire Entries | - | 23 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 11 mm | 11 mm |
| Pitch [x] | 0.433 in | 0.433 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc | Zinc |
| Terminal Screw Material | Steel | Phosphor Bronze, Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
YK114 Series
CONN BARRIER STRP 23CIRC 0.433"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Block Type | Barrier Type | Terminal Screw Material | Material - Insulation | Top Termination | Operating Temperature [Min] | Operating Temperature [Max] | Terminal Screw Finish | Bottom Termination | Features | Number of Circuits | Mounting Type | Number of Wire Entries [custom] | Pitch [x] | Pitch [x] | Voltage Rating | Number of Rows | Material Flammability Rating | Current Rating (Amps) | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK YK1142333000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Phosphor Bronze | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 23 | Chassis, Panel, Right Angle | 23 | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | |
AMPHENOL ANYTEK YK1140433000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Steel | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 4 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 4 | |
AMPHENOL ANYTEK YK1141833000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Phosphor Bronze | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 18 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 18 | |
AMPHENOL ANYTEK YK1142033000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Phosphor Bronze | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 20 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 20 | |
AMPHENOL ANYTEK YK1140933000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Steel | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 9 | ||
AMPHENOL ANYTEK YK1140333000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Steel | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 3 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 3 | |
AMPHENOL ANYTEK YK1140533000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Steel | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 5 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 5 | |
AMPHENOL ANYTEK YK1141933000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Phosphor Bronze | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 19 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 19 | |
AMPHENOL ANYTEK YK1140233100G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Steel | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 2 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 2 | |
AMPHENOL ANYTEK YK1140733000G | 12 AWG | 22 AWG | Barrier Block | 3 Wall (Tri) | Steel | Thermoplastic | Screws with Captive Plate | -40 °C | 115 °C | Zinc | Solder Tab | Flange | 7 | Chassis, Panel, Right Angle | 11 mm | 0.433 in | 300 VDC | 1 | UL94 V-0 | 20 A | 7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.97 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.63 | |||
| 70 | $ 0.58 | |||
| 140 | $ 0.57 | |||
| 280 | $ 0.48 | |||
| 560 | $ 0.46 | |||
| 1050 | $ 0.45 | |||
Description
General part information
YK114 Series
2 Circuit 0.433" (11.00mm) Barrier Block Connector Screws with Captive Plate
