Technical Specifications
Parameters and characteristics for this part
| Specification | 8307 060500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.348 in |
| Jacket (Insulation) Diameter [diameter] | 8.84 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 14 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 6.77 | |
Description
General part information
8307 Series

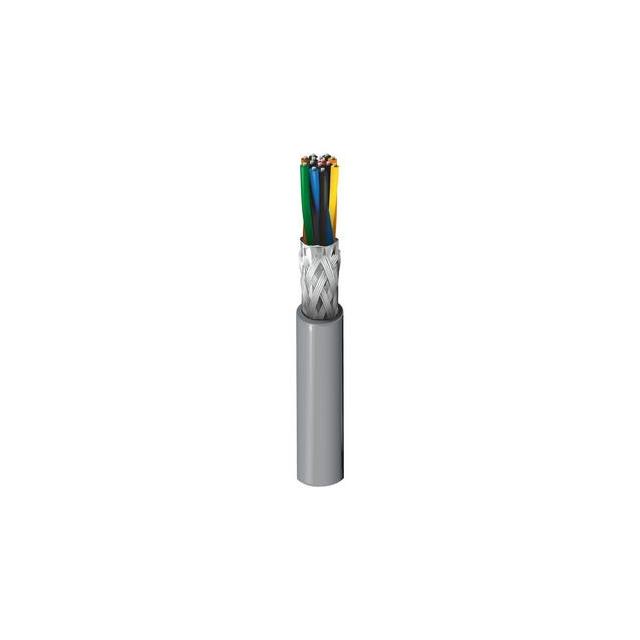

14 (7 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil, Braid 500.0' (152.4m)
