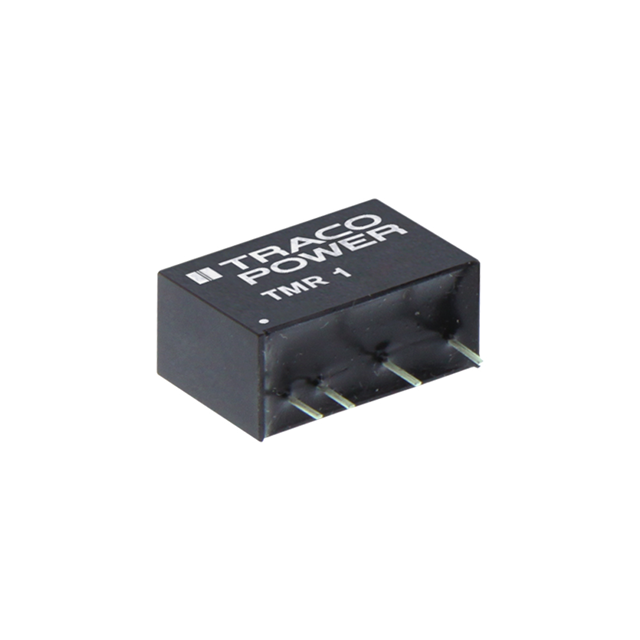

Specification	TMR 1-0522

Applications	ITE (Commercial)
Approval Agency	CSA, CB
Current - Output (Max)	42 mA
Efficiency	77 %
Features	SCP, OCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	6-SIP Module, Module
Power (Watts)	1 W
Size / Dimension Height	0.43 in
Size / Dimension Length	0.67 in
Size / Dimension Width	0.3 in
Type	Isolated Module
Voltage - Input (Max)	9 V
Voltage - Input (Min)	4.5 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TMR 1 Series

Part	Applications	Package Leads	Package Name	Mounting Type	Current - Output (Max)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Type	Voltage - Input (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Efficiency	Voltage - Input (Max)	Voltage - Isolation	Power (Watts)	Approval Agency	Features	Voltage - Output 1	Number of Outputs	Voltage - Output 2
Traco Power TMR 1-4811SM	ITE (Commercial)	7 Leads	14-SMD Module Module	Surface Mount	200 mA	0.34 in	0.54 in	0.74 in	Isolated Module	36 V	82 °C	-40 °C	79 %	75 V	1500 Vrns	1 W	CB CSA	OCP Remote On/Off SCP	5 V	1
Traco Power TMR 1-2423SM	ITE (Commercial)	7 Leads	14-SMD Module Module	Surface Mount	33 mA	0.34 in	0.54 in	0.74 in	Isolated Module	18 V	82 °C	-40 °C	82 %	36 V	1500 Vrns	0.99 W	CB CSA	OCP Remote On/Off SCP	15 V	2	-15 V
Traco Power TMR 1-0515	ITE (Commercial)	4 Leads	6-SIP Module Module	Through Hole	42 mA	0.43 in	0.3 in	0.67 in	Isolated Module	4.5 V	85 °C	-40 °C	76 %	9 V	1500 Vrns	1 W	CB CSA	OCP SCP	24 V	1
Traco Power TMR 1-0512	ITE (Commercial)	4 Leads	6-SIP Module Module	Through Hole	83 mA	0.43 in	0.3 in	0.67 in	Isolated Module	4.5 V	85 °C	-40 °C	77 %	9 V	1500 Vrns	1 W	CB CSA	OCP SCP	12 V	1
Traco Power TMR 1-1213	ITE (Commercial)	4 Leads	6-SIP Module Module	Through Hole	67 mA	0.43 in	0.3 in	0.67 in	Isolated Module	9 V	85 °C	-40 °C	80 %	18 V	1500 Vrns	1 W	CB CSA	OCP SCP	15 V	1
Traco Power TMR 1-4822SM	ITE (Commercial)	7 Leads	14-SMD Module Module	Surface Mount	42 mA	0.34 in	0.54 in	0.74 in	Isolated Module	36 V	82 °C	-40 °C	81 %	75 V	1500 Vrns	1 W	CB CSA	OCP Remote On/Off SCP	12 V	2	-12 V
Traco Power TMR 1-0513SM	ITE (Commercial)	7 Leads	14-SMD Module Module	Surface Mount	67 mA	0.34 in	0.54 in	0.74 in	Isolated Module	4.5 V	82 °C	-40 °C	81 %	9 V	1500 Vrns	1 W	CB CSA	OCP Remote On/Off SCP	15 V	1
Traco Power TMR 1-2411SM	ITE (Commercial)	7 Leads	14-SMD Module Module	Surface Mount	200 mA	0.34 in	0.54 in	0.74 in	Isolated Module	18 V	82 °C	-40 °C	79 %	36 V	1500 Vrns	1 W	CB CSA	OCP Remote On/Off SCP	5 V	1
Traco Power TMR 1-0523	ITE (Commercial)	5 Leads	6-SIP Module Module	Through Hole	33 mA	0.43 in	0.3 in	0.67 in	Isolated Module	4.5 V	85 °C	-40 °C	78 %	9 V	1500 Vrns	0.99 W	CB CSA	OCP SCP	15 V	2	-15 V
Traco Power TMR 1-2412	ITE (Commercial)	4 Leads	6-SIP Module Module	Through Hole	83 mA	0.43 in	0.3 in	0.67 in	Isolated Module	18 V	85 °C	-40 °C	80 %	36 V	1500 Vrns	996 mW	CB CSA	OCP SCP	12 V	1
