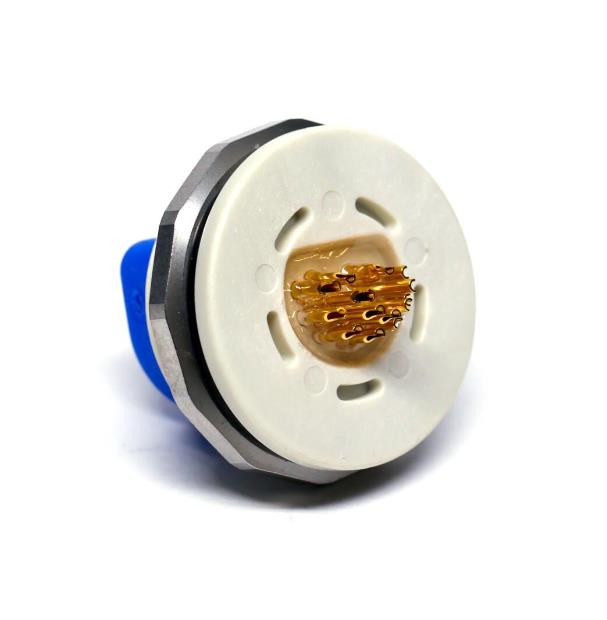

P1RNM14B1R

Active

Amphenol Alden Products Company

CONN RCPT FMALE 14P GOLD SLD CUP

Search across all available documentation for this part.

Active

Amphenol Alden Products Company

CONN RCPT FMALE 14P GOLD SLD CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Specification	P1RNM14B1R	P1RNM14 Series

Applications	Medical	Medical
Color	Blue, White	Blue, White
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP64/IP67 - Dust Tight, Water Resistant, Waterproof	IP64/IP67 - Dust Tight, Water Resistant, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Number of Positions	14	14
Orientation	1	1
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	300 VDC	300 VDC

Part	Number of Positions	Voltage Rating	Orientation	Shielding	Insert Material	Ingress Protection	Contact Material	Fastening Type	Applications	Primary Material	Connector Type	Color	Contact Finish - Mating	Mounting Feature
Amphenol Alden Products Company P1RNM14B1R	14	300 VDC	1	Unshielded	Nylon, Polyamide (PA)	IP64/IP67 - Dust Tight, Water Resistant, Waterproof	Copper Alloy	Push-Pull	Medical	Plastic	Receptacle, Female Sockets	Blue, White	Gold	Bulkhead - Front Side Nut
Amphenol Alden Products Company P1RNM14B1F	14	300 VDC	1	Unshielded	Nylon, Polyamide (PA)	IP64/IP67 - Dust Tight, Water Resistant, Waterproof	Copper Alloy	Push-Pull	Medical	Plastic	Receptacle, Female Sockets	Blue, White	Gold	Bulkhead - Rear Side Nut
