C1AXS-1436G

Active

CW Industries

IDC CABLE - CSC14S/AE14G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC14S/AE14G/X

Technical Specifications

Parameters and characteristics commom to parts in this series

IDC CABLE - CSC14S/AE14G/X

Part	Connector Type	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Rows	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Shielding	Number of Positions	Color
CW Industries C1AXS-1436G	Socket to Cable	IDC	14	0.05 "	1.27 mm	Tin	2	0.1 in	2.54 mm	2.54 µm	100 µin	3 ft	914.4 mm	Unshielded
CW Industries C1AXS-1636G	Socket to Cable	IDC		0.05 "	1.27 mm	Tin	2	0.1 in	2.54 mm	2.54 µm	100 µin	3 ft	914.4 mm	Unshielded	16
CW Industries C1AXS-1636M	Socket to Cable	IDC		0.05 "	1.27 mm	Tin	2	0.1 in	2.54 mm	2.54 µm	100 µin	3 ft	914.4 mm	Unshielded	16	Multiple, Ribbon
CW Industries C1AXS-1036G	Socket to Cable	IDC	10	0.05 "	1.27 mm	Tin	2	0.1 in	2.54 mm	2.54 µm	100 µin	3 ft	914.4 mm	Unshielded
CW Industries C1AXS-1036M	Socket to Cable	IDC	10	0.05 "	1.27 mm	Tin	2	0.1 in	2.54 mm	2.54 µm	100 µin	3 ft	914.4 mm	Unshielded		Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

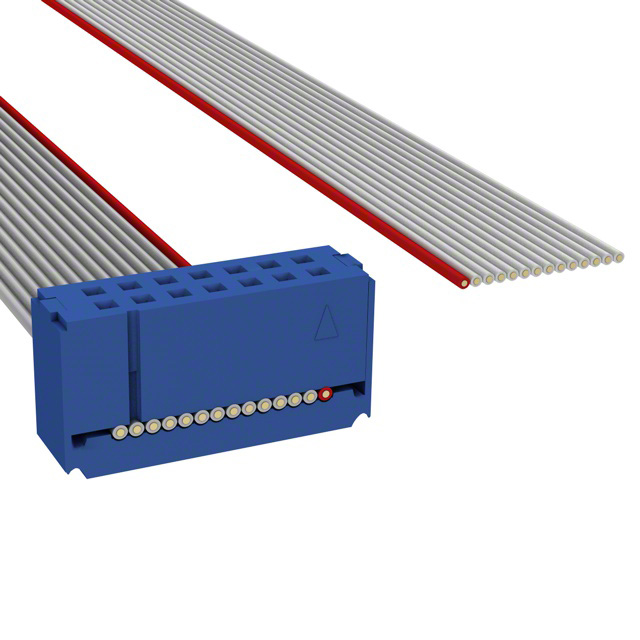

14 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
