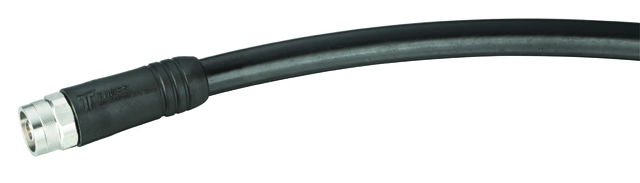

LMR-600-PVC

Active

Amphenol Times Microwave Systems

INDOOR CABLE, BLACK PVC JACKET

Deep-Dive with AI

Search across all available documentation for this part.

LMR-600-PVC

Active

Amphenol Times Microwave Systems

INDOOR CABLE, BLACK PVC JACKET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5	$ 1408.39

Description

General part information

LMR-600 Series

Coaxial Cable 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-600-PVC	LMR-600 Series

Cable Type	Coaxial	Coaxial - Plenum, Coaxial, Coaxial - Riser
Conductor Material	Aluminum, Copper Coated	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	11.56 mm	11.56 mm
Dielectric Diameter [diameter]	0.455 in	0.455 in
Dielectric Material	Foam Polyethylene (FPE)	Polytetrafluoroethylene (PTFE), Foam Polyethylene (FPE)
Features	-	Flame Retardant, Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	14.99 mm	14.35 - 14.99 mm
Jacket (Insulation) Diameter [diameter]	0.59 in	0.565 - 0.59 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Plenum, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Low Smoke Zero Halogen (LSZH), Thermoplastic Elastomer (TPE), Poly-Vinyl Chloride (PVC), Riser, Polyethylene (PE), Riser, Fluoropolymer, Plenum
Jacket Color	Black	Orange, Black, Red
Length	-	15.24 - 76.2 m
Length	-	50 - 3000 ft
Length	-	1 - 100 ft
Length	-	3.05 - 300 mm
Length	-	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C	75 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 - -5 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid, Foil
Spool Size	-	500 '
Spool Size	-	152.4 m
VoP, Velocity of Propagation	85	76 - 87

LMR-600 Series

CABLE LMR-600 FRPVC 50'

Part	Jacket (Insulation) Material	Jacket Color	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Features	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Length	Length	Shield Material	Shield Type	Conductor Strand	Length [x]	Length [x]
Amphenol Times Microwave Systems LMR-600-LLPL	Plenum, Poly-Vinyl Chloride (PVC)	Orange	Coaxial - Plenum	75 ░C	-5 °C	Aluminum, Copper Coated	Flame Retardant	76	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Polytetrafluoroethylene (PTFE)	15.24 m	50 ft	Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-PVC-W	Poly-Vinyl Chloride (PVC)		Coaxial	85 °C	-40 °C	Aluminum, Copper Coated		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-LSZH	Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Copper, Bare		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid	1 ft	300 mm
Amphenol Times Microwave Systems LMR-600-75-FR	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	87	11.56 mm	0.455 in	75 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-DB	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Direct Burial, Watertight	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
Amphenol Times Microwave Systems LMR-600	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
Amphenol Times Microwave Systems LMR-600-75-DB	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Direct Burial	87	11.56 mm	0.455 in	75 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-UF	Thermoplastic Elastomer (TPE)	Black	Coaxial	85 °C	-40 °C	Copper, Bare		87	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid		100 ft	30.48 m
Amphenol Times Microwave Systems LMR-600-FR-PVC	Poly-Vinyl Chloride (PVC), Riser	Black	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-FR	Polyethylene (PE), Riser	Black	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
