SR1502
ObsoleteTaiwan Semiconductor Corporation
SCHOTTKY DIODES & RECTIFIERS 15A, 20V, SCHOTTKY RECTIFIER
SR1502
ObsoleteTaiwan Semiconductor Corporation
SCHOTTKY DIODES & RECTIFIERS 15A, 20V, SCHOTTKY RECTIFIER
Description
General part information
SR1502

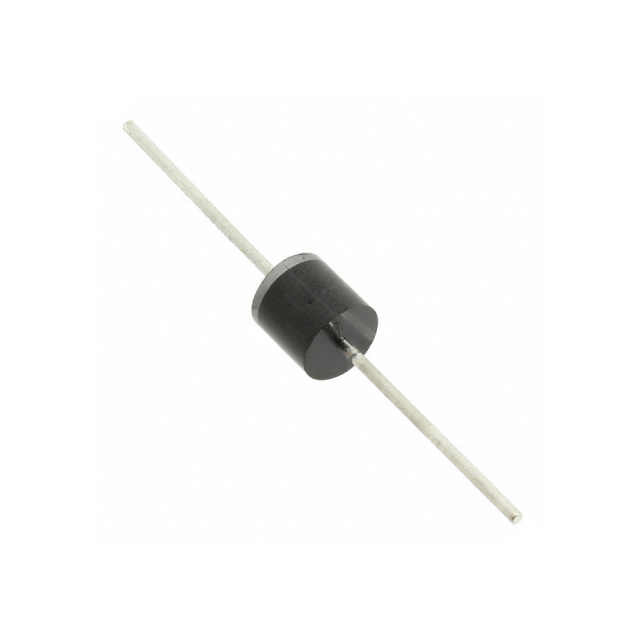

Diode 20 V 15A Through Hole R-6
Technical Specifications
Parameters and characteristics for this part
| Specification | SR1502 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage | 500 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | R-6, Axial |
| Package Name | R-6 |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) | 550 mV |
