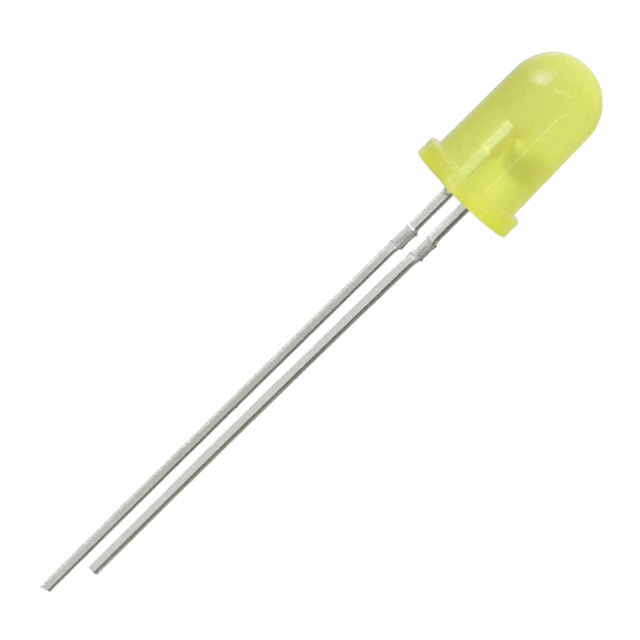

HLMP4719
ActiveEverlight Electronics Co Ltd
LED YELLOW DIFFUSED T-1 3/4 T/H
HLMP4719
ActiveEverlight Electronics Co Ltd
LED YELLOW DIFFUSED T-1 3/4 T/H
Description
General part information
HLMP4719
Yellow LED Indication - Discrete 1.9V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP4719 |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) | 8.89 mm |
| Lens Color | Yellow |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 2 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 3/4 |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Peak | 585 nm |
