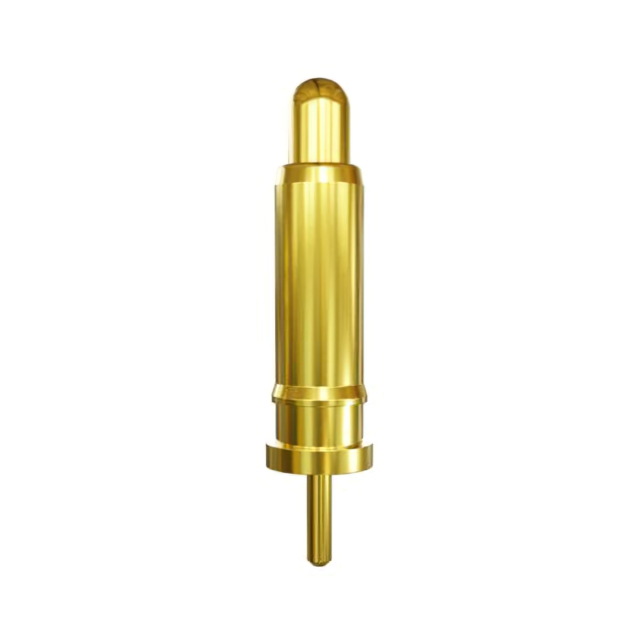

Specification	P70-2630045R

Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Sleeve, Plunger
Current Rating	8 A
Mating Cycles	10000 cycles
Maximum Working Height	0.256 in
Minimum Working Height	0.201 in
Mounting Type	Through Hole
Operating Force - Mid Compression	60.16 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pad Layout Diameter	0.079 in
Pad Layout Shape	Circular
Plunger Diameter	0.04 in
Recommended Working Height	0.228 in
