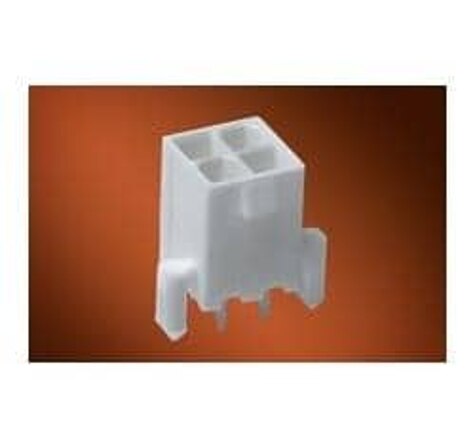

Specification	0039289128

Applications	Telecommunications, General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Natural
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

003928 Series

Part	Number of Rows	Pitch - Mating	Contact Shape	Contact Type	Mounting Type	Insulation Height	Connector Type	Row Spacing - Mating	Contact Finish - Mating	Insulation Color	Number of Positions	Style	Shrouding	Contact Length - Post	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Material	Termination	Number of Positions Loaded	Material Flammability Rating	Insulation Material	Applications	Contact Finish Thickness - Post	Features
Molex 0039281063	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Tin	Natural	6	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	35.4 µin	Brass	Solder	All	UL94 V-2	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	35 µin
Molex 0039287038	1	0.264 in	Circular	Male Pin	Through Hole	0.591 in	Header		Tin	Natural	3	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	39.4 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Telecommunications	39.4 µin	Board Lock
Molex 0039289148	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Gold	Natural	14	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	30 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	100 Ąin	Board Lock
Molex 0039288180	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Tin	Natural	18	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	35.4 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	35 µin
Molex 0039289048	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Gold	Natural	4	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	30 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	100 Ąin	Board Lock
Molex 0039288040	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Tin	Natural	4	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	35.4 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	35 µin
Molex 0039288200	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Tin	Natural	20	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	35.4 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	35 µin
Molex 0039289028	2		Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Gold	Natural	2	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	30 µin	Brass	Solder	All	UL94 V-0	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	100 Ąin	Board Lock
Molex 0039285106
Molex 0039281043	2	0.165 in	Square	Male Pin	Through Hole	0.504 in	Header	0.165 in	Tin	Natural	4	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Locking Ramp	Tin	35.4 µin	Brass	Solder	All	UL94 V-2	Nylon 6/6 Polyamide (PA66)	General Purpose Industrial Telecommunications	35 µin
