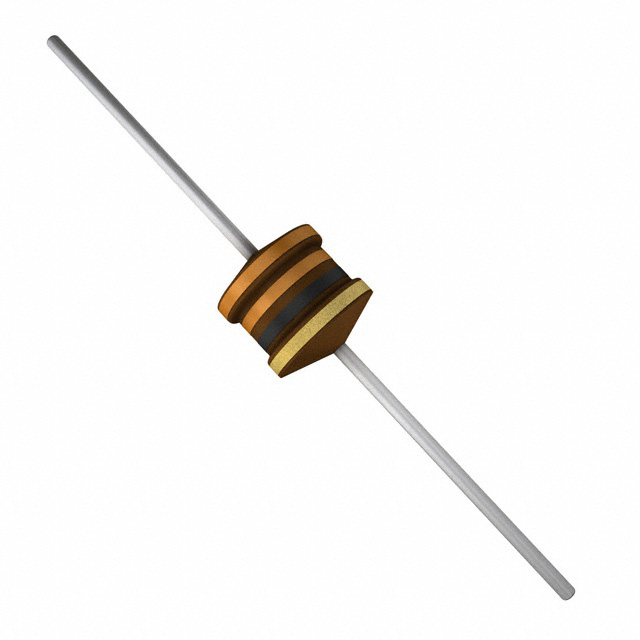

B82144F2333J9
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 1.9A 0.22OHM TH
B82144F2333J9
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 1.9A 0.22OHM TH
Description
General part information
B82144F2333J9
33 µH Unshielded Wirewound Inductor 1.9 A 220mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144F2333J9 |
|---|---|
| Current - Saturation (Isat) | 1.65 A |
| Current Rating | 1.9 A |
| DC Resistance (DCR) (Max) | 220 mOhm |
| Frequency - Self Resonant | 9 MHz |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 40 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 5 % |
| Type | Wirewound |
