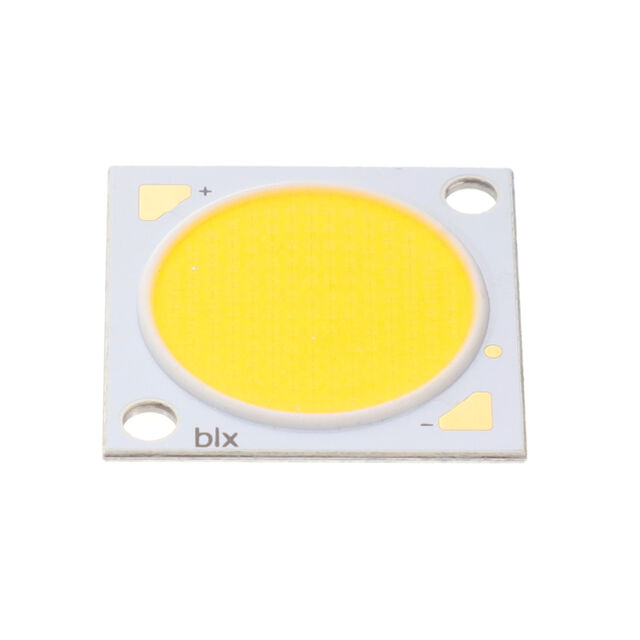

BXRE-65S4001-C-74

Active

BRIDGELUX

V18C THRIVE COOL WHITE LED ARRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-65S4001-C-74

Active

BRIDGELUX

V18C THRIVE COOL WHITE LED ARRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-65S4001-C-74	BXRE-65 Series

CCT (K)	6500 K	6500 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	95	70 - 98
Current - Max [Max]	2.34 A	1 - 900 A
Current - Test	-	1.05 - 900 A
Features	-	Dimming
Height [z]	1.7 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	19.2 mm	6.3 - 23.3 mm
Lumens/Watt @ Current - Test	129 lm/W	119 - 184 lm/W
Luminous Flux @ Current/Temperature	5205 lm	469 - 11722 lm
Size / Dimension [x]	24 mm	12.5 - 28 mm
Size / Dimension [y]	24 mm	12.5 - 28 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34.4 V	17.2 - 50.7 V

BXRE-65 Series

LED COB V22 CL WHT SQUARE 6500K

Part	Temperature - Test	Configuration	Height [z]	Light Emitting Surface (LES) [diameter]	Type	Current - Max [Max]	CRI (Color Rendering Index)	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Luminous Flux @ Current/Temperature	Color	Lens Type	Voltage - Forward (Vf) (Typ)	Current - Test
BRIDGELUX BXRE-65E6501-B-73	85 °C	Square	1.7 mm	22.6 mm	Chip On Board (COB)	2.34 A	80	6500 K	159 lm/W	28 mm	28 mm	120 °	9439 lm	Cool, White	Flat	50.7 V
BRIDGELUX BXRE-65C6501-C-74	85 °C	Square	1.7 mm	22.6 mm	Chip On Board (COB)	2.88 A	70	6500 K	161 lm/W	28 mm	28 mm	120 °	11722 lm	Cool, White	Flat	50.7 V	1.44 A
BRIDGELUX BXRE-65S0801-D-74		Square	1.7 mm	9 mm	Chip On Board (COB)	700 mA	98	6500 K	128 lm/W	12.5 mm	12.5 mm	120 °	771 lm	Cool, White	Flat	17.2 V	350 mA
BRIDGELUX BXRE-65E4001-C-83		Square	1.65 mm	19.6 mm	Chip On Board (COB)	3 A	80	6500 K	182 lm/W	24 mm	24 mm	120 °	6475 lm	Cool, White	Flat	33.9 V	1.05 A
BRIDGELUX BXRE-65C1001-C-74	85 °C	Square	1.7 mm	10.2 mm	Chip On Board (COB)	720 mA	70	6500 K	154 lm/W				1887 lm	Cool, White	Flat	34 V	360 mA
BRIDGELUX BXRE-65C1001-B-74	85 °C	Square	1.7 mm	10.2 mm	Chip On Board (COB)	540 mA	70	6500 K	154 lm/W				1416 lm	Cool, White	Flat	34 V	270 mA
BRIDGELUX BXRE-65E4001-B-73	85 °C	Square	1.7 mm	19.2 mm	Chip On Board (COB)	1.8 A	80	6500 K	158 lm/W	24 mm	24 mm	120 °	4833 lm	Cool, White	Flat	34 V	900 mA
BRIDGELUX BXRE-65E2001-C-73	85 °C	Square	1.7 mm	14 mm	Chip On Board (COB)	1.26 A	80	6500 K	158 lm/W	19 mm	19 mm	120 °	3383 lm	Cool, White	Flat	33.9 V	630 mA
BRIDGELUX BXRE-65C1001-B-73	85 °C	Square	1.7 mm	10.2 mm	Chip On Board (COB)	540 mA	70	6500 K	155 lm/W			120 °	1416 lm	Cool, White	Flat	33.8 V	270 mA
BRIDGELUX BXRE-65C4001-B-73	85 °C	Square	1.7 mm	19.2 mm	Chip On Board (COB)	1.8 A	70	6500 K	159 lm/W	24 mm	24 mm	120 °	4876 lm	Cool, White	Flat	34 V	900 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.57
		50	$ 12.12
		100	$ 11.22

Description

General part information

BXRE-65 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V18 Thrive™ Array White, Cool Square
