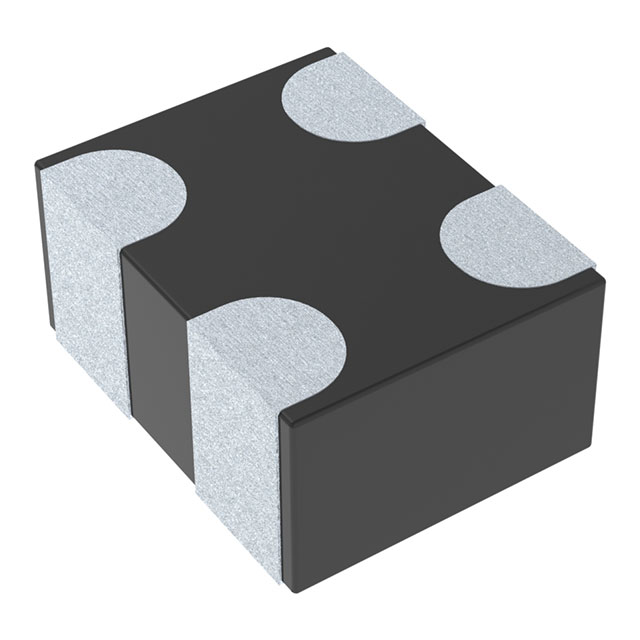

SDMM0806H-2-120T
ObsoleteShenzhen Sunlord Electronics Co., Ltd.
CMC 130MA 2LN 12 OHM SMD
SDMM0806H-2-120T
ObsoleteShenzhen Sunlord Electronics Co., Ltd.
CMC 130MA 2LN 12 OHM SMD
Description
General part information
SDMM0806H-2-120T
2 Line Common Mode Choke Surface Mount 12 Ohms @ 100 MHz 130mA DCR 2.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | SDMM0806H-2-120T |
|---|---|
| Current Rating (Max) | 130 mA |
| DC Resistance (DCR) (Max) | 2.5 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.018 in |
| Impedance | 12 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0302 (0806 Metric) |
| Size / Dimension Length | 0.033 in |
| Size / Dimension Width | 0.026 in |
| Voltage Rating - DC | 5 V |
