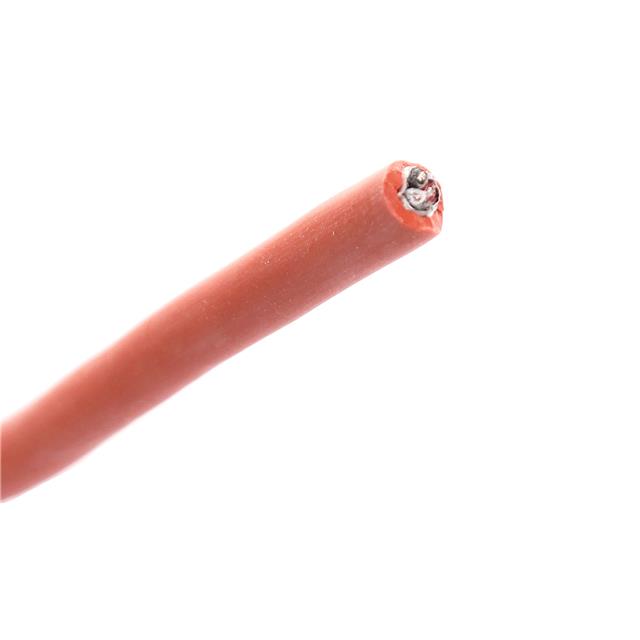

CABLE 3COND 22AWG RED SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
83395 002100
ActiveBelden Inc.
CABLE 3COND 22AWG RED SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 83395 002100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.208 in |
| Jacket (Insulation) Diameter [diameter] | 5.28 mm |
| Jacket (Insulation) Material | Silicone Rubber |
| Jacket (Insulation) Thickness | 0.8 mm |
| Jacket (Insulation) Thickness | 0.0315 in |
| Jacket Color | Red |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -70 °C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Control, Communication, Instrumentation |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1962.85 | |
| 3 | $ 1815.90 | |||
| 5 | $ 1752.92 | |||
Description
General part information
83395 Series
3 Conductor Multi-Conductor Cable Red 22 AWG Foil 100.0' (30.5m)
