2413
ActiveKeystone Electronics

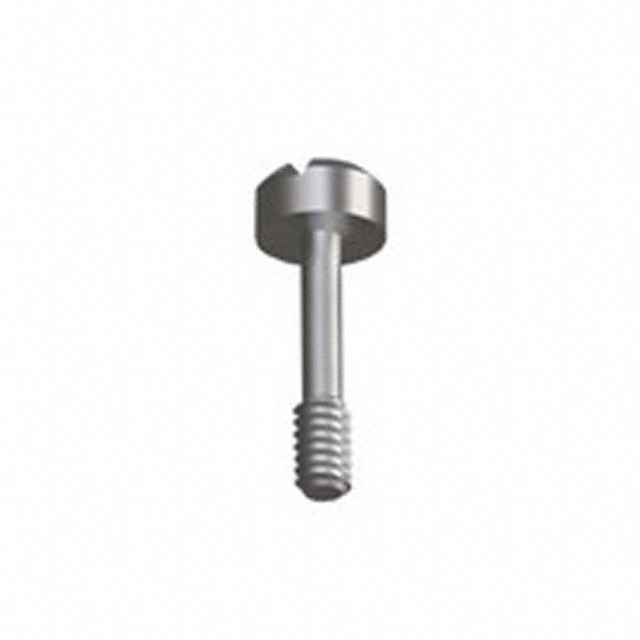

SHLDR SCREW CHEESE SLOTTED #4-40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2413
ActiveKeystone Electronics
SHLDR SCREW CHEESE SLOTTED #4-40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2413 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 0.25 in |
| Head Diameter [diameter] | 0.25 " |
| Head Diameter [diameter] | 6.35 mm |
| Head Height | 0.125 " |
| Head Height | 0.125 " |
| Head Height | 3.18 mm |
| Length - Below Head | 0.469 in |
| Length - Below Head | 0.46875 in |
| Length - Below Head | 11.91 mm |
| Length - Overall | 15.09 mm |
| Length - Overall | 0.594 in |
| Material | Stainless Steel |
| Screw Head Type | Cheese Head |
| Thread Size | #4-40 |
| Type | Shoulder Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.88 | |
| 1 | $ 2.15 | |||
| 25 | $ 1.84 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.52 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.20 | |||
Description
General part information
2413
#4-40 Cheese Head Shoulder Screw Slotted Drive Stainless Steel
Documents
Technical documentation and resources
