9841 06010000

Active

Belden Inc.

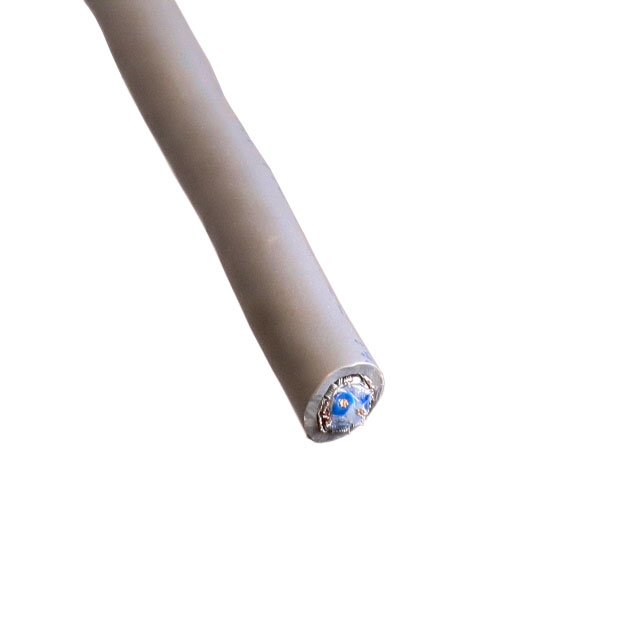

CABLE 2COND 24AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 24AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9841 06010000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.232 in
Jacket (Insulation) Diameter [diameter]	5.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	3048 m
Length [x]	10000 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	24 AWG

Part	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Length [x]	Length [x]	Jacket Color	Wire Gauge	Shield Material	Features	Ratings	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length
Belden Inc. 9841 060500	Computer	0.232 in	5.89 mm	Braid Foil	Polyethylene (PE)	32 AWG	7	Copper Tinned	500 '	152.4 m	Chrome	24 AWG	Aluminum Copper Tinned	Drain Wire	UL Style 2919	2	0.889 mm	0.035 in	90 % 100 %	Multi-Conductor	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)
Belden Inc. 9841 06010000		0.232 in	5.89 mm	Braid Foil	Polyethylene (PE)	32 AWG	7	Copper Tinned	10000 ft		Chrome	24 AWG	Aluminum Copper Tinned	Drain Wire	UL Style 2919	2	0.889 mm	0.035 in	90 % 100 %	Multi-Conductor	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	3048 m
Belden Inc. 9841 060100	Computer	0.232 in	5.89 mm	Braid Foil	Polyethylene (PE)	32 AWG	7	Copper Tinned	100 ft	30.5 m	Chrome	24 AWG	Aluminum Copper Tinned	Drain Wire	UL Style 2919	2	0.889 mm	0.035 in	90 % 100 %	Multi-Conductor	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 2.37

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 10000' (3048.0m)
