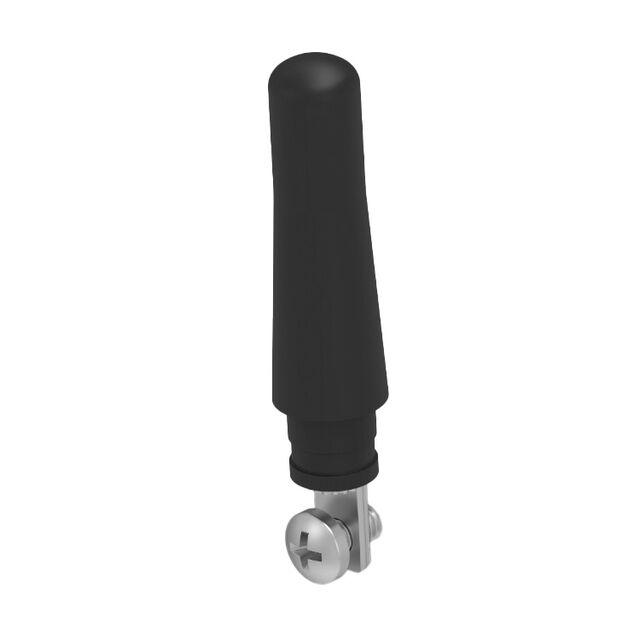

ANT-450-PW-LP
ActiveTE Connectivity Linx
HELICAL ANTENNA, LTE, EXTERNAL M
Deep-Dive with AI
Search across all available documentation for this part.
ANT-450-PW-LP
ActiveTE Connectivity Linx
HELICAL ANTENNA, LTE, EXTERNAL M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-450-PW-LP |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | 5G, LTE |
| Frequency (Center/Band) | 458.75 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 467.5 MHz |
| Frequency Range [Min] | 450 MHz |
| Gain | -1.1 dBi |
| Height (Max) | 42 mm |
| Height (Max) [Max] | 1.654 in |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 5 W |
| RF Family/Standard | Cellular |
| Termination | Connector |
| VSWR | 2.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.22 | |
| 10 | $ 4.20 | |||
| 25 | $ 3.68 | |||
| 100 | $ 3.09 | |||
| 250 | $ 2.81 | |||
| 500 | $ 2.63 | |||
| 1000 | $ 2.49 | |||
| 2500 | $ 2.33 | |||
Description
General part information
ANT-450-PW-LP
RF ANTENNA 5G, LTE Whip, Straight Connector Screw Mount
Documents
Technical documentation and resources
No documents available
