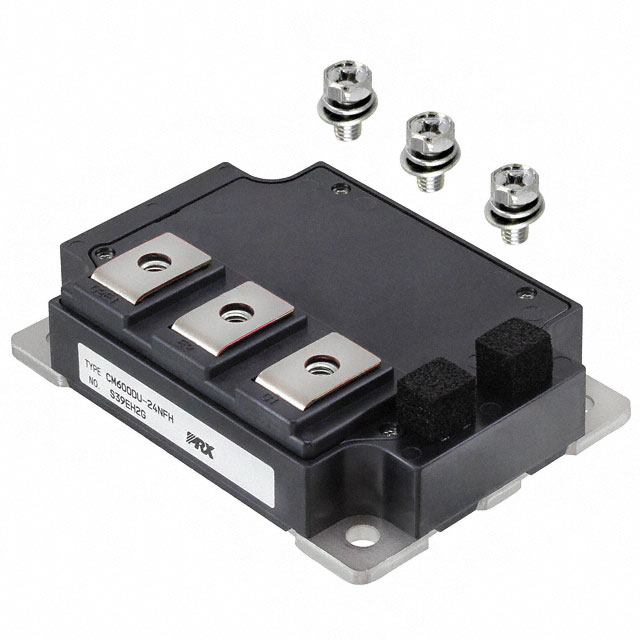

CM600DU-24NFH
UnknownPowerex Inc.
IGBT MOD 1200V 600A 1550W
CM600DU-24NFH
UnknownPowerex Inc.
IGBT MOD 1200V 600A 1550W
Description
General part information
CM600DU-24NFH
IGBT Module Half Bridge 1200 V 600 A 1550 W Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CM600DU-24NFH |
|---|---|
| Configuration | Half Bridge |
| Current - Collector (Ic) (Max) | 600 A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 95 nF |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 1550 W |
| Vce(on) (Max) | 6.5 V |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
