Description
General part information

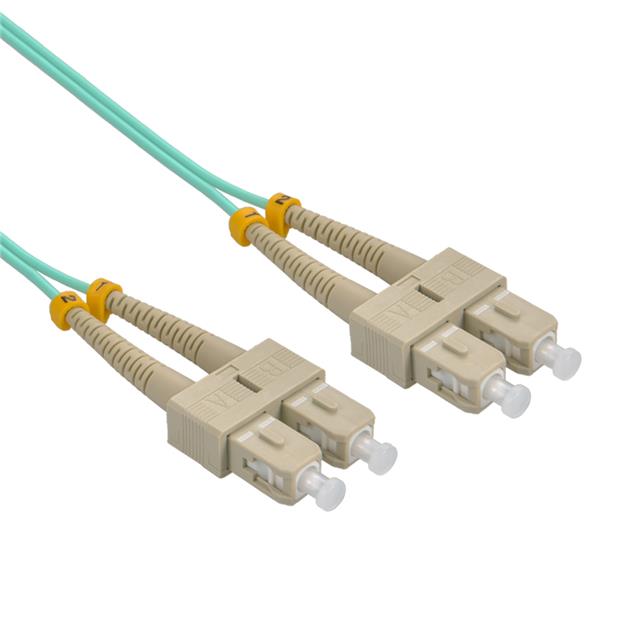

CM-102635BSTK
Cable Fiber Optic SC/UPC To SC/UPC 50/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CM-102635BSTK |
|---|---|
| 1st Connector | SC/UPC |
| 2nd Connector | SC/UPC |
| Cable Type | Fiber Patch |
| Color - Cable | Aqua |
| Color - Connectors | Beige |
| Features | Low Smoke |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 6.6 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH, OFNR |
| Return Loss | 55 dB |
| Type | Multimode, Duplex, OM3 |
