CND0216A
ObsoletePanasonic Electronic Components

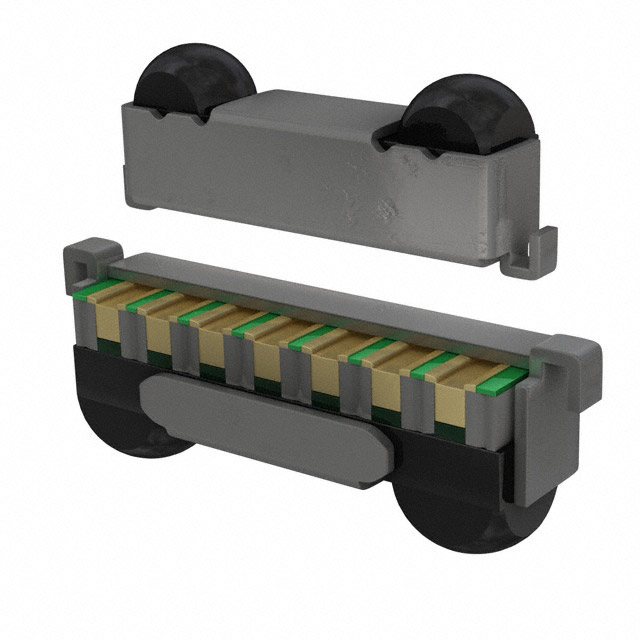

IRDA MODULE 115.2KBPS 9 PIN SMD
CND0216A
ObsoletePanasonic Electronic Components
IRDA MODULE 115.2KBPS 9 PIN SMD
Description
General part information
CND0216A
115.2kbs (SIR) IRDA Transceiver Top View
Technical Specifications
Parameters and characteristics for this part
| Specification | CND0216A |
|---|---|
| Data Rate | 115.2 kbs |
| Idle Current (Typical) | 200 nA |
| Link Range, Low Power | 40 cm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Orientation | Top View |
| Shutdown | Yes |
| Size Height | 2 mm |
| Size Length | 8.2 mm |
| Size Width | 1.6 mm |
| Voltage - Supply (Maximum) | 4.5 V |
| Voltage - Supply (Minimum) | 2.8 V |
