Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1415178 | G-INB-M16 Series |
|---|---|---|
| Color | Black | Light Gray, Black |
| Includes | Strain Relief, O-Ring, Seal | Strain Relief, O-Ring, Seal |
| Ingress Protection | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | IP68/IP69 - Dust Tight, Water Resistant, Waterproof |
| Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.394 " | 0.394 " |
| Outside Cable Diameter (Max) [Max] [diameter] | 10 mm | 10 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.177 in | 0.177 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 4.5 mm | 4.5 mm |
| Thread Length | 0.354 in | 0.354 in |
| Thread Length | 9 mm | 9 mm |
| Thread Size | M16 | M16 |
| Type | Cable Gland | Cable Gland |
G-INB-M16 Series
CABLE GLAND 4.5-10MM M16
| Part | Material | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Color | Type | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Thread Length | Thread Length | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1415172 | Polyamide (PA), Nylon | 0.177 in | 4.5 mm | Light Gray | Cable Gland | 0.394 " | 10 mm | O-Ring, Seal, Strain Relief | 100 °C | -40 °C | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | 0.354 in | 9 mm | M16 |
Phoenix Contact 1415178 | Polyamide (PA), Nylon | 0.177 in | 4.5 mm | Black | Cable Gland | 0.394 " | 10 mm | O-Ring, Seal, Strain Relief | 100 °C | -40 °C | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | 0.354 in | 9 mm | M16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G-INB-M16 Series

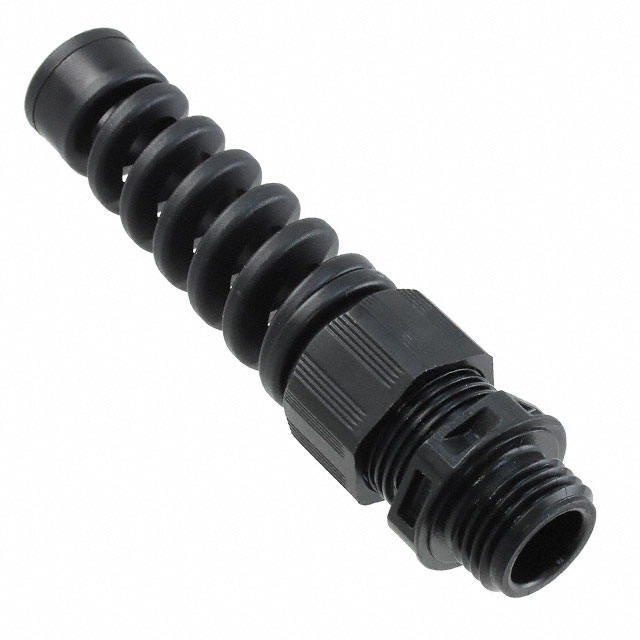

Cable Gland Polyamide (PA), Nylon M16 Black
