1-794106-0

Active

TE Connectivity AMP Connectors

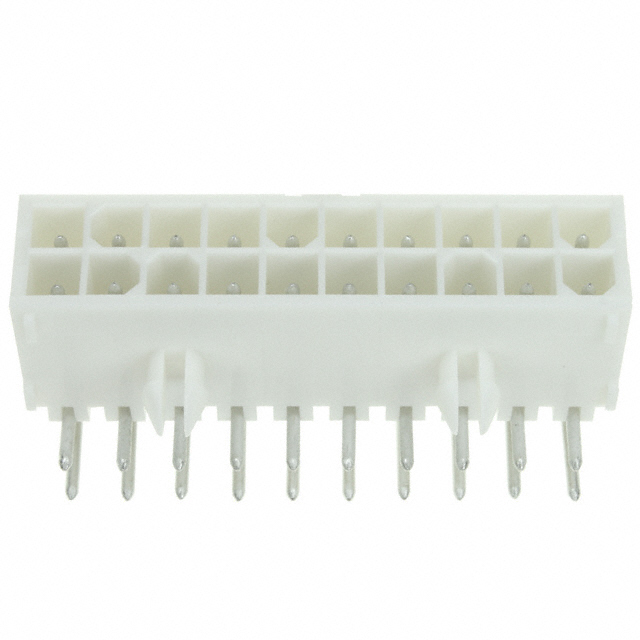

CONN HEADER R/A 20POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 20POS 4.14MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 20 position 0.163" (4.14mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1-794106-0	794106 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	150 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	3.81 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER R/A 20POS 4.14MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Material	Mounting Type	Insulation Material	Contact Finish - Post	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Current Rating (Amps)	Number of Positions Loaded	Connector Type	Contact Shape	Style	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Material Flammability Rating	Fastening Type	Contact Finish - Mating
TE Connectivity AMP Connectors 1-794106-0	150 Áin	3.81 Ám	Shrouded - 4 Wall	0.145 in	3.68 mm	2	White	4.14 mm	0.163 in	Solder	Brass	Through Hole, Right Angle	Nylon, Polyamide (PA)	Tin	600 VAC	150 Áin	3.81 Ám	General Purpose	Varies by Wire Gauge	All	Header	Circular	Board to Cable/Wire	20	Male Pin	4.14 mm	0.163 in	85 °C	-20 C	9.8 mm	0.386 in	UL94 V-0	Locking Ramp
TE Connectivity AMP Connectors 794106-2	30 Áin	0.76 Ám	Shrouded - 4 Wall	0.145 in	3.68 mm	2	White	4.14 mm	0.163 in	Solder	Brass	Through Hole, Right Angle	Nylon, Polyamide (PA)	Tin-Lead	600 VAC	150 Áin	3.81 Ám	General Purpose	Varies by Wire Gauge	All	Header	Circular	Board to Cable/Wire	20	Male Pin	4.14 mm	0.163 in	105 ░C	-20 C	9.8 mm	0.386 in	UL94 V-0	Locking Ramp	Gold
