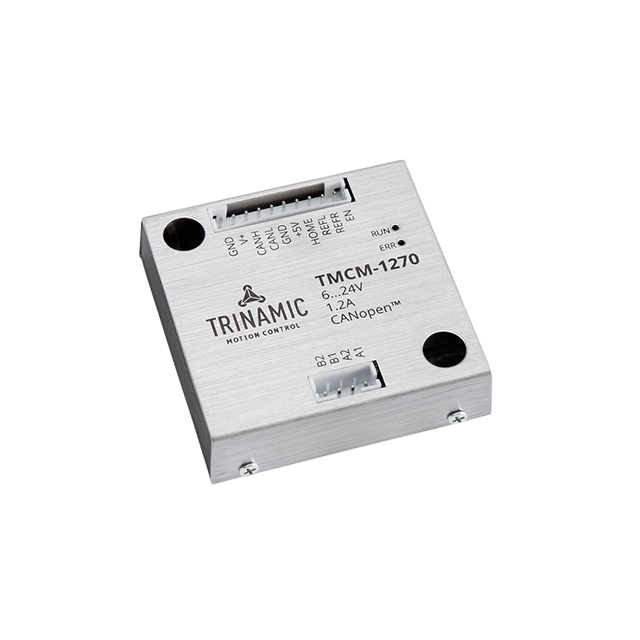

TMCM-1270-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.2A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1270-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.2A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1270-CANOPEN | TMCM-1270 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 1.2 A | 1.2 A |
| For Use With/Related Products | - | TMCM-1270 Series |
| Interface | CAN | CAN |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Module | Module |
| Usage | - | Motor |
| Voltage - Supply | 24 VDC | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 101.35 | |
| 1 | $ 101.64 | |||
TMCM-1270 Series
STEPPER DRIVER 1.2A
| Part | Current - Output | Interface | Motor Type | Mounting Type | Type | Voltage - Supply | Control / Drive Type | Operating Temperature [Min] | Operating Temperature [Max] | For Use With/Related Products | Accessory Type | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1270-TMCL | 1.2 A | CAN | Stepper | Chassis Mount | Module | 24 VDC | Bipolar, Stepper | -30 ░C | 40 °C | |||
Analog Devices Inc./Maxim Integrated TMCM-1270-CABLE | TMCM-1270 Series | Cable Assembly | Motor | |||||||||
Analog Devices Inc./Maxim Integrated TMCM-1270-CANOPEN | 1.2 A | CAN | Stepper | Chassis Mount | Module | 24 VDC | Bipolar, Stepper | -30 ░C | 40 °C |
Description
General part information
TMCM-1270 Series
Stepper, Bipolar 24VDC Supply 1.2A Load
