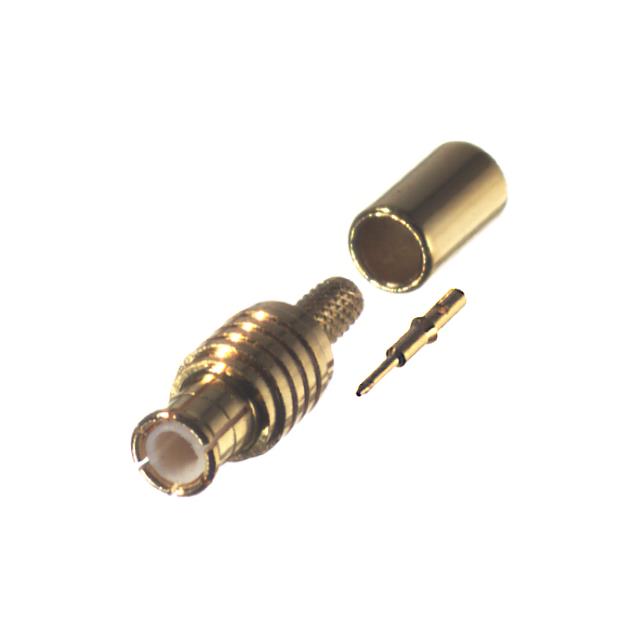

RMX-8000-1C

Active

RF Industries

MCX MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

MCX MALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RMX-8000-1C

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Connector Type	Connector Style	Body Material	Housing Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Contact Termination	Body Finish	Shield Termination	Number of Ports	Voltage Rating	Center Contact Plating	Impedance	Mounting Type	Dielectric Material
RF Industries RMX-8000-1C	Male Pin Plug	MCX	Beryllium Copper Brass	Gold	Snap-On	-65 ░C	165 °C	Brass	6000 MHz	Solder	Gold	Crimp	1	335 V	Gold	50 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
