E2266FS092
ObsoletePervasive Displays
2.66" EPD, SPECTRA, W.ITC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E2266FS092
ObsoletePervasive Displays
2.66" EPD, SPECTRA, W.ITC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E2266FS092 |
|---|---|
| Backlight | Without Backlight |
| Diagonal Screen Size | 67.56 mm |
| Diagonal Screen Size | 2.66 in |
| Display Mode | Reflective |
| Display Type | TFT - Electronic Paper Display (EPD) |
| Dot Pitch [x] | 0.2 mm |
| Dot Pitch [y] | 0.2 mm |
| Dot Pixels [x] | 296 |
| Dot Pixels [y] | 152 pixels |
| Graphics Color | Black, Red, White |
| Interface | SPI |
| Viewing Area [x] | 60.09 mm |
| Viewing Area [y] | 30.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
E2266FS092

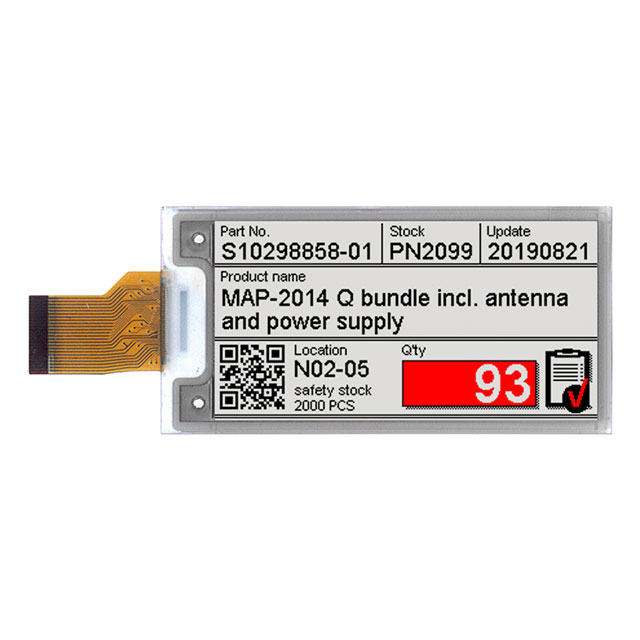

Graphic LCD Display Module Reflective Black, Red, White TFT - Electronic Paper Display (EPD) SPI 2.66" (67.56mm) 296 x 152
Documents
Technical documentation and resources
