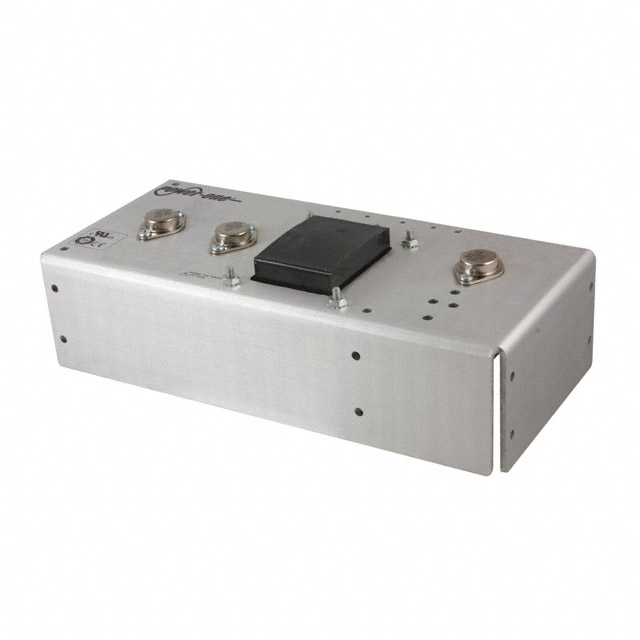

HCBB-75W-AG

Active

Bel Power Solutions

AC/DC CONVERTER 5V +/-15V 75W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 5V +/-15V 75W

Technical Specifications

Parameters and characteristics for this part

Specification	HCBB-75W-AG

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	6 A
Current - Output 2	1.5 A
Efficiency	45 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	3
Power (Watts)	75 W
Size / Dimension [x]	279.4 mm
Size / Dimension [y]	4.87 ", 123.7 mm
Size / Dimension [z]	83.3 mm, 3.28 "
Standard Number	60950-1, 62368-1
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

AC/DC CONVERTER 5V +/-15V 75W

Part	Current - Output 2	Mounting Type	Voltage - Input	Power (Watts)	Approval Agency	Standard Number	Features	Voltage - Output 3	Voltage - Output 1	Type	Applications	Current - Output 1	Voltage - Isolation	Voltage - Output 2	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Bel Power Solutions HCBB-75W-AG	1.5 A	Chassis Mount	100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC	75 W	CE, CSA, UL	60950-1, 62368-1	Adjustable Output, Remote Sense	-15 V	5 V	Linear	ITE (Commercial)	6 A	4.242 kV	15 V	45 %	3	4.87 ", 123.7 mm	3.28 ", 83.3 mm	279.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 3 Output 5V 15V -15V 100, 120, 220, 230, 240 VAC Input

Technical documentation and resources

No documents available
