61-8755.11

Active

EAO

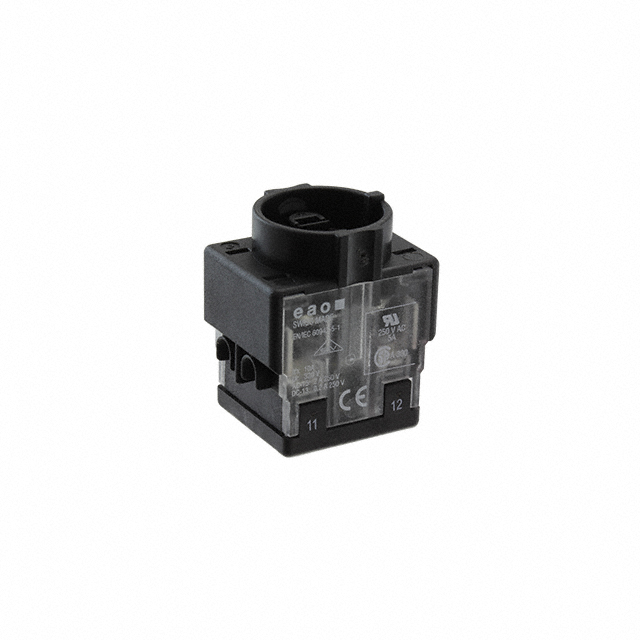

CONTACT BLOCK DPST-NC 5A 250V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK DPST-NC 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	61-8755.11	61-8755 Series

(Select First, Then Apply Filters) Compatible Series	EAO, 61	EAO, 61
Circuit	DPST-NC	DPST-NC
Contact Rating @ Voltage	250 VAC, 5 A	0.3 - 250 VAC
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Screw Terminal, Quick Connect, Solder
Termination Style	-	0.11 in
Termination Style	-	2.8 mm

CONTACT BLOCK DPST-NC 5A 250V

Part	Termination Style	Circuit	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage	Requires	Termination Style	Termination Style
EAO 61-8755.11	Screw Terminal	DPST-NC	61, EAO	5 A, 250 VAC	Switch Body
EAO 61-8755.37	Quick Connect, Solder	DPST-NC	61, EAO	0.3 A, 50 VAC/DC	Switch Body	0.11 in	2.8 mm
EAO 61-8755.17	Quick Connect, Solder	DPST-NC	61, EAO	5 A, 250 VAC	Switch Body	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 5A @ 250VAC/DC
