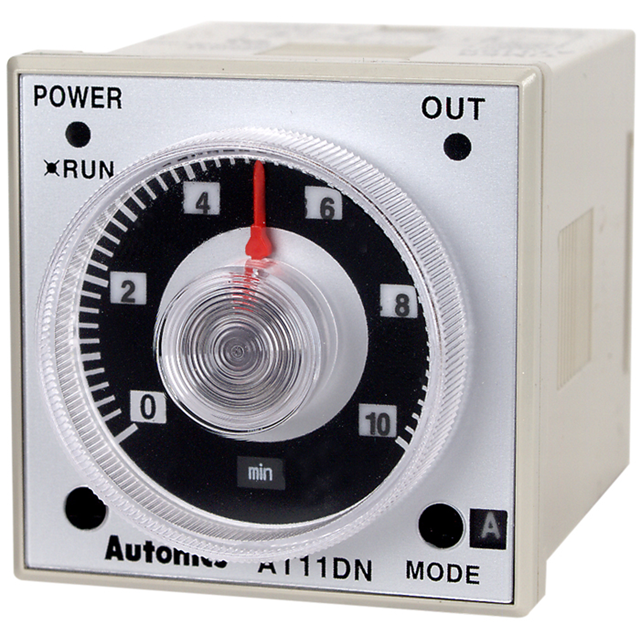

AT11DN

Active

AUTONICS

RELAY TIME DELAY 100HR 5A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 100HR 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AT11DN	AT11D Series

Circuit	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 5 A	5 - 250 VAC
Delay Time [Max]	100 Hrs	100 Hrs
Delay Time [Min]	0.05 Sec	0.05 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Termination Style	Plug In, 11 Pin (Octal)	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial	Hand Dial
Voltage - Supply	-	12 - 24 VAC
Voltage - Supply [Max]	240 VDC, 240 VAC	240 VDC
Voltage - Supply [Min]	100 VAC, 24 V	24 - 100 VAC

RELAY TIME DELAY 100HR 5A 250V

Part	Contact Rating @ Voltage	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Circuit	Timing Adjustment Method	Termination Style	Delay Time [Max]	Delay Time [Min]	Voltage - Supply
AUTONICS AT11DN	5 A, 250 VAC	240 VDC, 240 VAC	24 V, 100 VAC	Programmable (Multi-Function)	DPDT (2 Form C)	Hand Dial	Plug In, 11 Pin (Octal)	100 Hrs	0.05 Sec
AUTONICS AT11DN-2	5 A, 250 VAC			Programmable (Multi-Function)	DPDT (2 Form C)	Hand Dial	Plug In, 11 Pin (Octal)	100 Hrs	0.05 Sec	24 VAC
AUTONICS AT11DN-1	5 A, 250 VAC			Programmable (Multi-Function)	DPDT (2 Form C)	Hand Dial	Plug In, 11 Pin (Octal)	100 Hrs	0.05 Sec	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 49.00

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 5A @ 250VAC Panel Mount
