158226-012015

Active

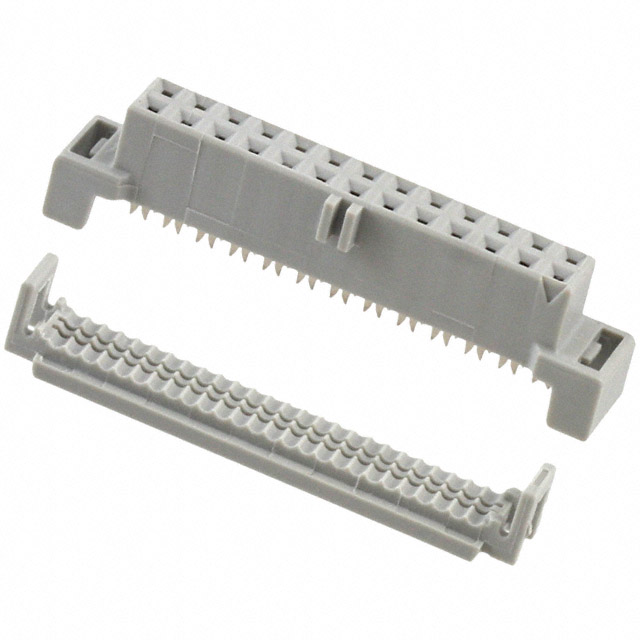

CONN SOCKET 26POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN SOCKET 26POS IDC 28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

CONN SOCKET 26POS IDC 28AWG GOLD

Part	Features	Row Spacing	Row Spacing	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Wire Gauge	Contact Finish	Connector Type	Wire Type	Cable Termination	Mounting Type	Pitch [x]	Pitch [x]	Color	Contact Type
3M 158226-012015	Feed Through	2 mm	0.079 in	26	15 µin	0.38 µm	2	28 AWG	Gold	Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.079 in	2 mm	Gray	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Rectangular Socket Connector IDC Gold 28 AWG
