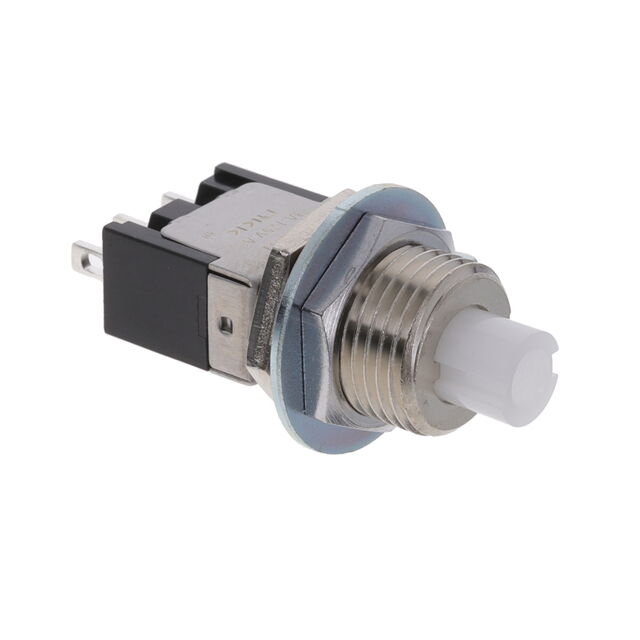

MBN12SB1W01
Pushbutton Switch SPDT Standard Panel Mount, Rear
Technical Specifications
Parameters and characteristics for this part
| Specification | MBN12SB1W01 |
|---|---|
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating | 2 A, 3 A |
| Electrical Life (Cycles) | 25000 |
| Mechanical Life (Cycles) | 50000 Cycles |
| Mounting Type | Rear, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 12.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
