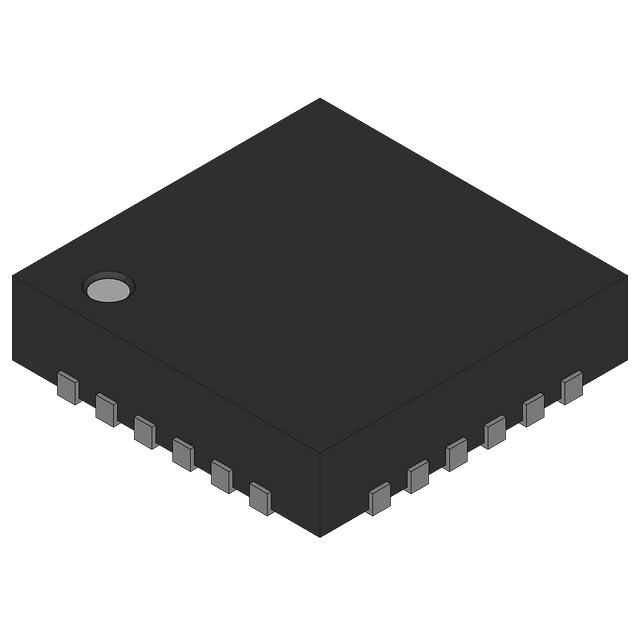

CY2544FI

Obsolete

Infineon Technologies

CLOCK GENERATOR, 166MHZ, CMOS

Search across all available documentation for this part.

Obsolete

Infineon Technologies

CLOCK GENERATOR, 166MHZ, CMOS

Technical Specifications

Parameters and characteristics for this part

Specification	CY2544FI

Differential - Input:Output	False
Divider/Multiplier	Yes/No
Frequency - Max [Max]	166 MHz
Input	LVCMOS, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Clock
Package / Case	24-VFQFN Exposed Pad
PLL	Yes with Bypass
Ratio - Input:Output	1:9
Supplier Device Package	24-QFN (4x4)
Type	Fractional N Synthesizer, Fanout Distribution, Multiplexer, Spread Spectrum Clock Generator
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.25 V

Part	Number of Circuits	Type	PLL	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Mounting Type	Divider/Multiplier	Frequency - Max [Max]	Ratio - Input:Output	Input	Supplier Device Package	Output	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies CY2544QC023	4	Clock Generator	Yes with Bypass	3.6 V	2.25 V	24-UFQFN Exposed Pad	Surface Mount	Yes/No	166 MHz	1:9	Crystal LVCMOS	24-QFN (4x4)	Clock	70 °C	0 °C
Infineon Technologies CY2544QC014	4	Clock Generator	Yes with Bypass	3.6 V	2.25 V	24-UFQFN Exposed Pad	Surface Mount	Yes/No	166 MHz	1:9	Crystal LVCMOS	24-QFN (4x4)	Clock	70 °C	0 °C
Infineon Technologies CY2544FI	1	Fanout Distribution Fractional N Synthesizer Multiplexer Spread Spectrum Clock Generator	Yes with Bypass	3.6 V	2.25 V	24-VFQFN Exposed Pad	Surface Mount	Yes/No	166 MHz	1:9	Crystal LVCMOS	24-QFN (4x4)	Clock	85 °C	-40 °C
Infineon Technologies CY2544QC016T	4	Clock Generator	Yes with Bypass	3.6 V	2.25 V	24-UFQFN Exposed Pad	Surface Mount	Yes/No	166 MHz	1:9	Crystal LVCMOS	24-QFN (4x4)	Clock	70 °C	0 °C
Infineon Technologies CY2544FI	1	Fanout Distribution Fractional N Synthesizer Multiplexer Spread Spectrum Clock Generator	Yes with Bypass	3.6 V	2.25 V	24-VFQFN Exposed Pad	Surface Mount	Yes/No	166 MHz	1:9	Crystal LVCMOS	24-QFN (4x4)	Clock	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fanout Distribution, Fractional N Synthesizer, Multiplexer, Spread Spectrum Clock Generator IC 166MHz 1 24-VFQFN Exposed Pad
